10 pcs high head Push Button light Switch momentary 1no 1nc green led color 220v 400v 22mm for station
▶Product Description:

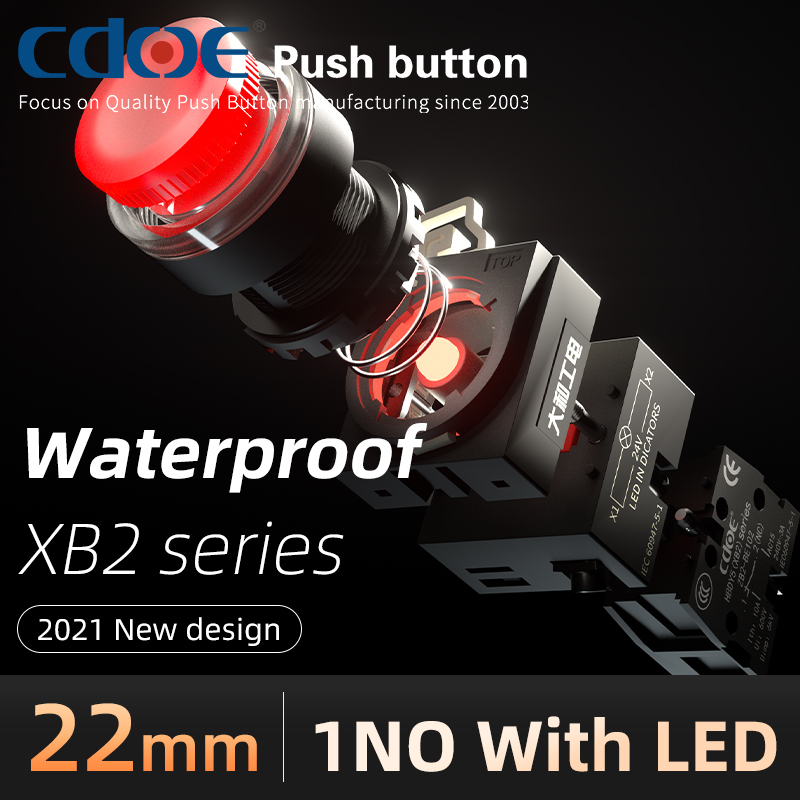

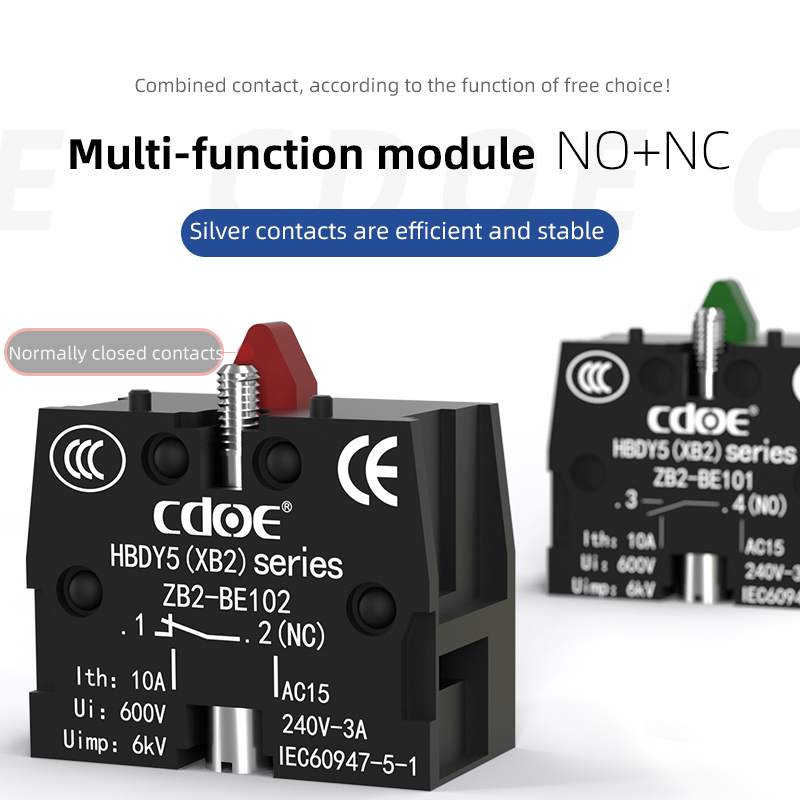

xb2 22MM push button 10pcs plstic momentary switch red green high head for industrial applications.It also has IP65 dustproof and waterproof level thus it is suitable for operating in open area,dusty environment,rainy.snowy weather conditions by wet hands for controlling the electric circuit,conveyer belt and construction apparatus.A variety of head options, the style introduced on this page is the high head type of the xb2 series.The freely combined contacts are assembled according to actual needs, and the color distinguishes normally open (Red) normally closed (Green) contacts.Two types of operation, momenatry circuit stops working after release. After the latching type is released, it needs to be pressed again to resume work.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
xb2 series high head push button switch 22mm |
|
| Product model： | HBDY5-KA-□G |
| Mounting hole size : | 22mm |
| Switch value: | Ith:10A,UI:600V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO,1NC,1NO1NC,2NO2NC |
| Appearance material: | Head:PA66; Switch button surface:PC; Contact:Silver alloy; |
| Terminal type: | Screw terminal |
| Working environment temperature: | -25℃～+65℃； |
| Connection form: | With wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V;110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/yellow/orange/blue/white |
| Led life: | 50000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V,1min,no flicker and breakdown |
| Life： | |
| Electrical part: Operate 50,000 times under rated load without any abnormality. | |
| Mechanical part: No abnormal movement for 1000,000times | |
▶Problems Encountered By Buyers:
Q: I have already purchased the button switch, but it seems that there is no introduction of the wiring diagram, can you introduce it to me?
A: “If you have not received the paper wiring diagram instructions, you can contact your salesperson. He will serve you one-on-one and introduce products..”

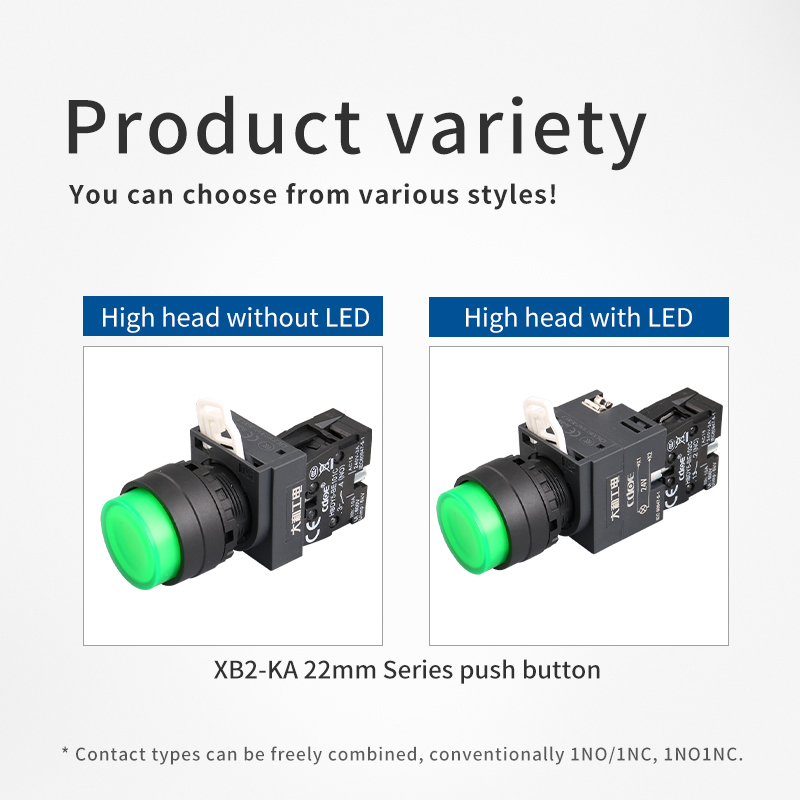

Q: I want to buy a high head button with light, is there any production?
A: “In addition to key buttons, knobs and emergency stop switches in our series, other heads can support lights. With a light, there will be an extra gray lamp holder in the middle of the button body.”
Q: I want to use the button on the station platform outdoors is that ok?
A: “Can be used on the station platform.I suggest you use it in combination with our button box.”
