Waterproof Push Buttons 22mm green mushroom head emergency switch 1no ip65 waterproof
▶Product Description:

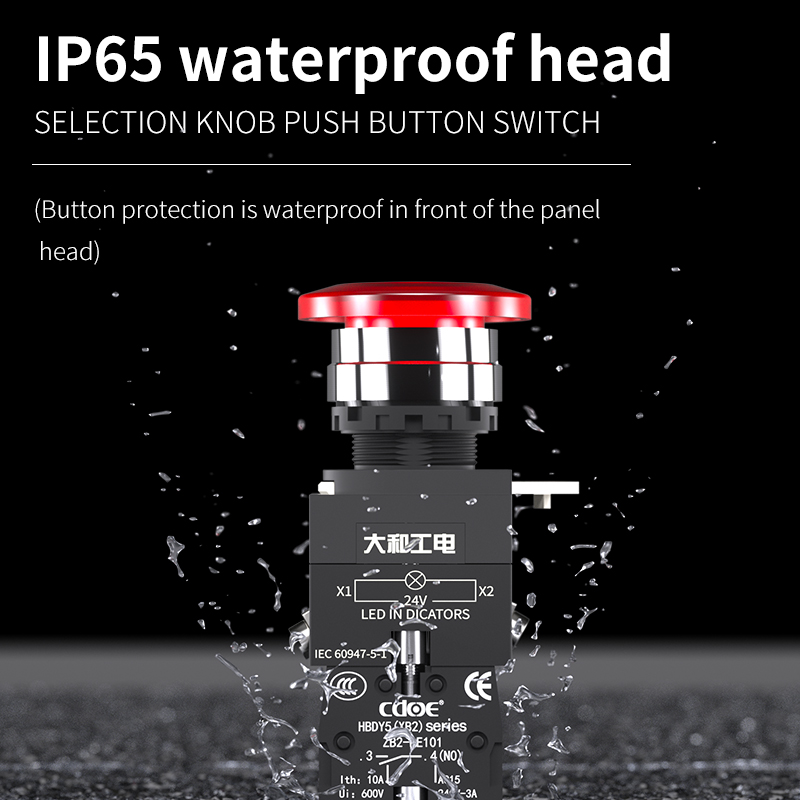

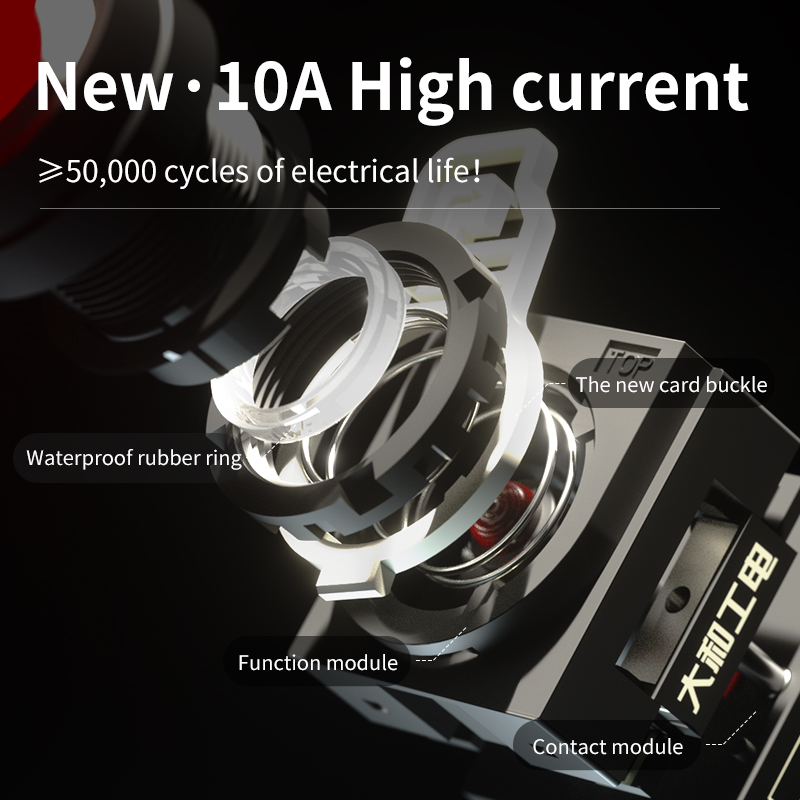

xb2 series mushroom head emergency push button.With 1no/1NC contact stacking assembly features, free to choose the style according to the needs of the scene. New Upgrade rotary yellow safety lock, fixed safe and stable, no need to worry about the head fall problem. Maximum voltage 600v, current 10A. with matte surface, a certain degree of Reduce the reflection of light. Internal configuration way rubber device, waterproof grade ip65, and has CCC, CE and many other certificates. Red (normally closed) green (normally open) contact area Normally open and normally closed. Commonly used in control instrument panels, industrial CNC machine tools, RV and other objects. There are two switch styles: Momentary or latching.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
Waterproof Buttons 22mm mushroom head green switch |
|
| Product model： | HBDY5-KA-□M/G |
| Mounting hole size : | 22mm |
| Switch value: | Ith:10A,UI:600V |
| Operation type: | Momentary,Latching |

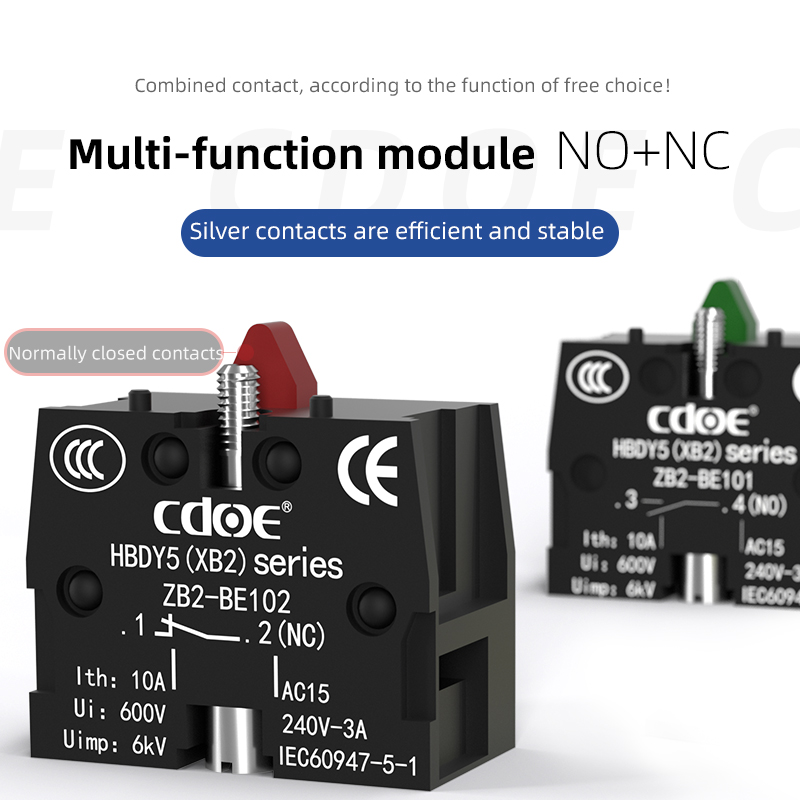

| Contact configuration: | 1NO,1NC,1NO1NC,2NO2NC |
| Appearance material: | Head:PA66; Switch button surface:PC; Contact:Silver alloy; |
| Terminal type: | Screw terminal |
| Working environment temperature: | -25℃～+65℃； |
| Connection form: | With wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V;110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/yellow/orange/blue/white |
| Led life: | 50000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V,1min,no flicker and breakdown |
| Life： | |
| Electrical part: Operate 50,000 times under rated load without any abnormality. | |
| Mechanical part: No abnormal movement for 1000,000times | |
▶Problems Encountered By Buyers:
Q: Is there a push button switch to press to lock and release the recovery function？
A: “According to your description, you need the momentary function of the pushbutton switch, all of our production pushbutton switches support this operation function.”
Q: Do you have lay5-bs542 mushroom head latching emergency stop button with light?
A: “lay5-bs543 button we also have a factory, you now see the page product is its upgraded models, snap rotating security lock fixed more stable, 45 ° elevation Angle screw, wiring more convenient and fast, no need to remove the base and then wiring. Recommend you to buy the new HBDY5 switch.”
Q: I buy a button, the default is 1NO1NC contact?
A: “The new xb series push button switch is assembled contact switch, the default is the price of a one contact (normally open), if you need 1no1nc will be charged an additional contact fee.”
