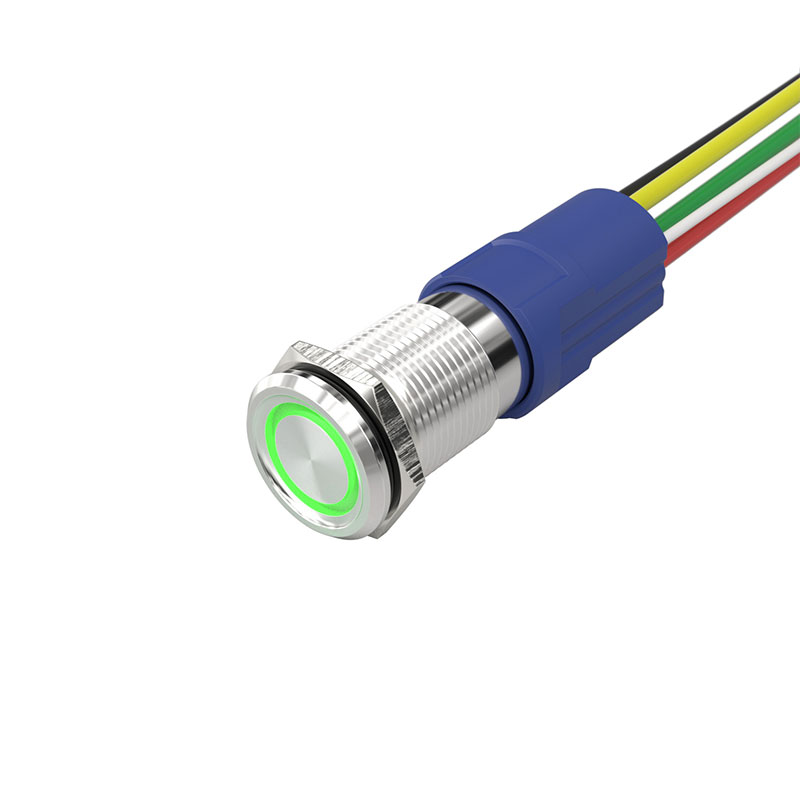

RGB push button switch 19mm Concave surface panel product waterproof ip67 spdt china
▶RGB Push Button Switch Product Description:
Unleash Control with Precision
Elevate your control experience with our RGB Push Button Switch. Engineered with a 19mm mounting hole, this switch boasts a robust rating of 10A/250V, ensuring reliable performance even in demanding environments.
Versatility Meets Durability
Featuring an IP67 waterproof class and crafted from stainless steel, our switch is built to withstand the elements, making it suitable for a wide range of applications. Whether it's industrial machinery or outdoor equipment, trust our switch to deliver.
Illuminate Your Control Panel
With LED options including red, green, blue, and bi-color combinations, our switch not only provides tactile feedback but also enhances visibility in any setting. Choose from momentary or latching operation pushbutton to suit your specific needs.
Precision Engineering for Seamless Integration
Designed with pin terminals and a concave head ring LED, our switch ensures easy installation and a sleek, professional appearance on your control panel.Used with special connectors, installation is more convenient.
Elevate Your Control Experience Today
Experience precision control like never before with our RGB Push Button Switch. From its durable construction to its versatile LED options, this switch is your go-to solution for enhancing control and efficiency in any application.
▶Product Model Specification:

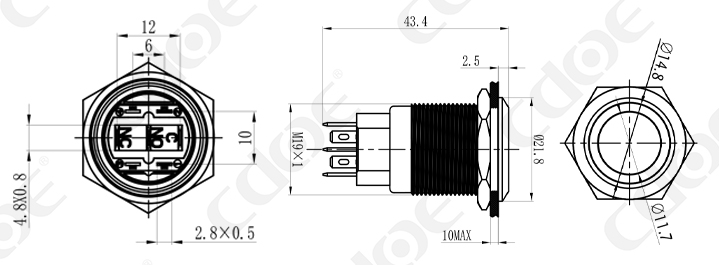

▶Product Size:
▶Technical Parameter:
|
HBS1-D19C-11E(Z)/J/S/RGB/T19 RGB push button switch |
|
| Product model : | HBS1-D19C-11E(Z)/J/S/RGB/T19 |
| Mounting hole size : | 19mm |
| Switch value: | Ith:10A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Base: Plastic PA66; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | RGB |
| Protection grade: | IP67 |
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
