push to start 22mm mushroom head button switch red color stainless steel shell spdt type reset 5 pins

Short Description:

Product Model: HBDS1-AGQ22M-11/J/S/R

Mounting Hole Size: 22MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary,Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Send email to us

Product Detail

Why choose us？

Product Tags

▶ Product Description:

Experience the epitome of precision and reliability with our 22mm Momentary Pushbutton. Crafted for demanding applications, this switch provides top-tier performance and features designed to meet your exacting requirements.

Engineered for Durability

This pushbutton switch features a 22mm mounting hole, making it suitable for various applications. With a robust rating of 5A/250V, it's built to withstand the toughest electrical demands.

Conquer Challenging Environments

IP67 waterproof-rated, this pushbutton is your answer to harsh and unpredictable surroundings. The 1NO1NC contact type and convenient pin terminal design ensure straightforward installation.

Green LED Indication

Our pushbutton comes with a vibrant green LED indicator, The switching volts are 6V, 12V, 24V, or a powerful 220V. The flat head ring LED design adds a modern, eye-catching aesthetic to your control panel.

Streamlined Installation

We understand the importance of efficiency. That's why we've included a supporting connector with this product. It simplifies the installation process, allowing you to save valuable time without compromising on quality.

Elevate Your Control Systems

Our 22mm Momentary Pushbutton is a fusion of cutting-edge performance and an appealing design. Whether you're working on an industrial or commercial project, its momentary operation delivers the precision you need. There's no need to compromise on your control systems when you can invest in a switch that's engineered to exceed your expectations.

Order Today

If you're ready to enhance your control systems with precision and style, don't wait. Place your order for our 22mm Momentary Pushbutton today and discover the superior performance and design it brings to your projects. We're committed to delivering top-quality products that elevate your systems to new heights. Upgrade with us!

▶ Product Model Specification:

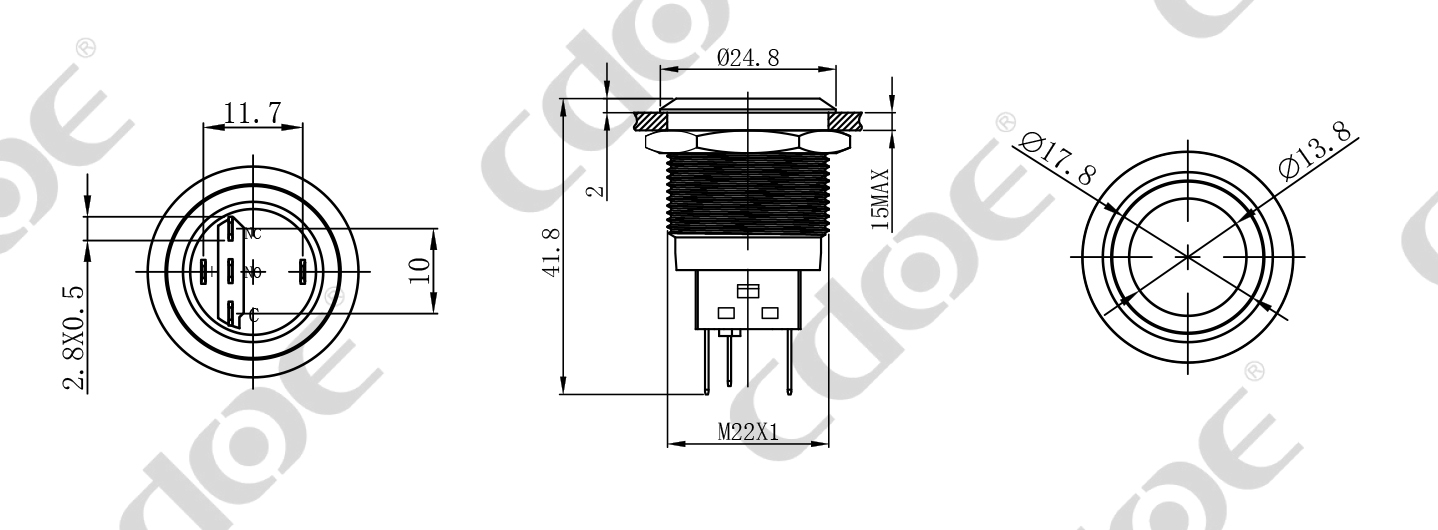

▶Product Size:

▶Technical Parameter:

HBDS1-AGQ22 Series momentary pushbutton
Product model :	HBDS1-AGQ22F-11E/J/S/G/T1
Mounting hole size :	22MM
Switch value:	Ith:5A,UI:250V
Operation type:	Momentary,Latching
Contact configuration:	1NO1NC
Appearance material:	Head:Stainless steel Switch button surface:Stainless steel Pedestal: PBT; Contact:Silver alloy;
Terminal type:	Pin terminal
Lamp bead parameters
Led voltage :	6V/12V/24V/36V/110V/220V
Led color:	Red/Green/Yellow/Orange/Blue/White
Led life:	50000 hours
Protection grade:	IP67
