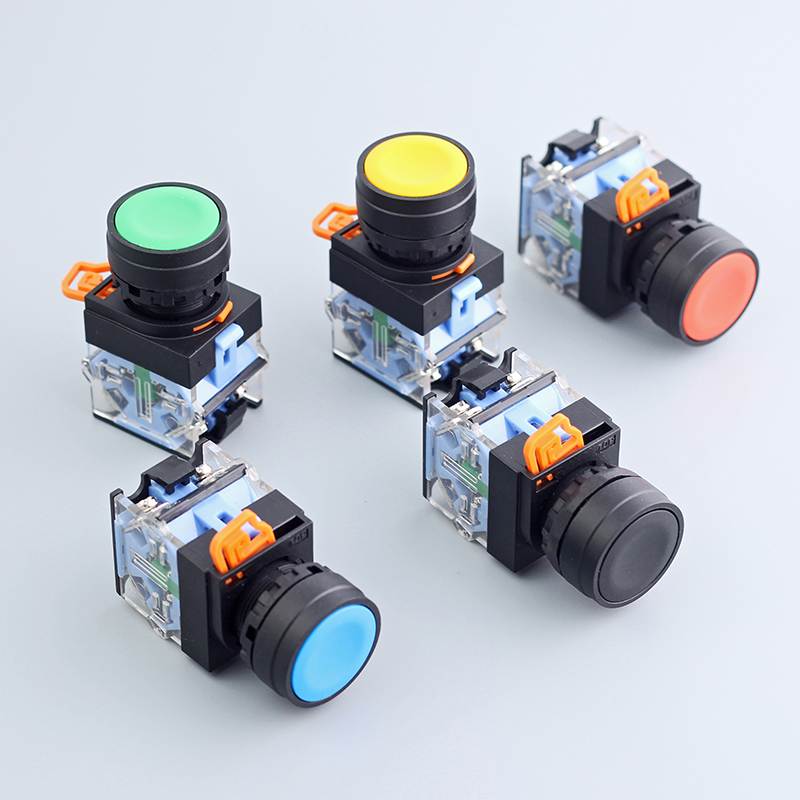

Push Button Switch 22mm LA38 Green waterproof ip65 1no1nc momentary
▶Product Description:
660v high current 10A switch 22MM momentary or latching operation type, multiple colors are available. Waterproof IP65 start switch plastic button is widely used in the control of electromagnetic starter、contactor、relay and other automatic control circuit.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
IP65 22mm la38 series push button switch |
|
| Product model : | HBDS0-KA-11(Z)/C/12V/G |
| Mounting hole size : | 22mm |
| Switch value: | Ith:10A,UI:600V |
| Operation type: | Momentary,Latching |

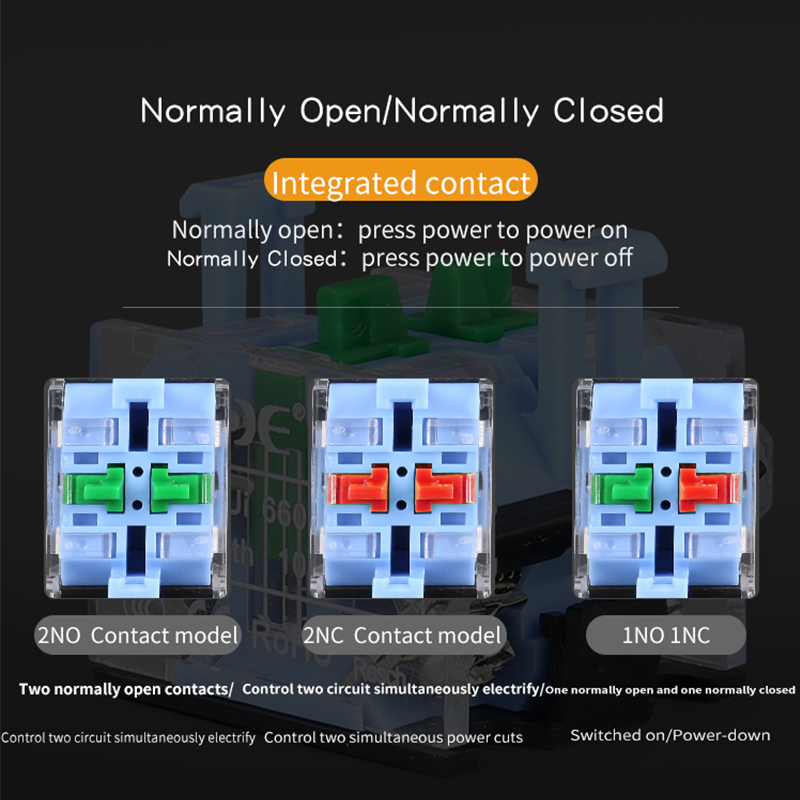

| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: PA66;

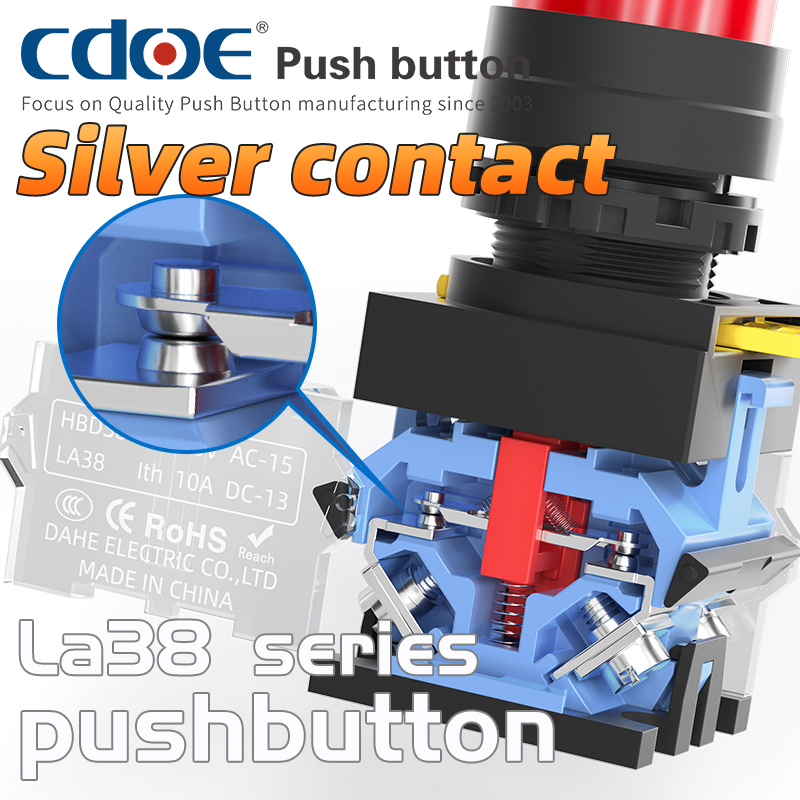

Switch button surface: PC; Contact: Silver alloy; |
| Terminal type: | Screw terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V;110V/220V
(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: Can I buy this button to start on the dryer？
A: “Can you tell me the specific current value of the operating environment?This button is rated 10A, 660V.If your environment is within the rated range of the button, it is completely usable.”
Q: If you push it does it stay on until pressed again or do you have to hold it for power to flow?
A:“You mentioned two cases, we can satisfy, one is reset, one is latching.If you still can't understand the description, you can contact our sales staff, and we will provide the corresponding video to you.”
Q: Can the following switch contact combination be 2no? I don't need 1NO1NC?
A:“It's ok, no problem.The LA38 series button can be combined freely, and can be arranged for production according to your needs.”
