16mm metal momentary power push button switch ip67 for Industrial equipment
▶Product Description:

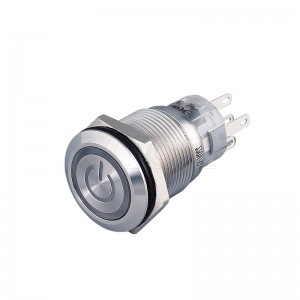

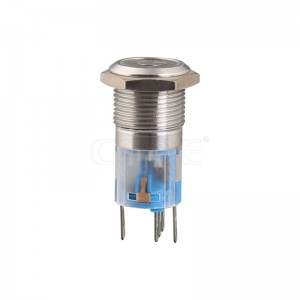

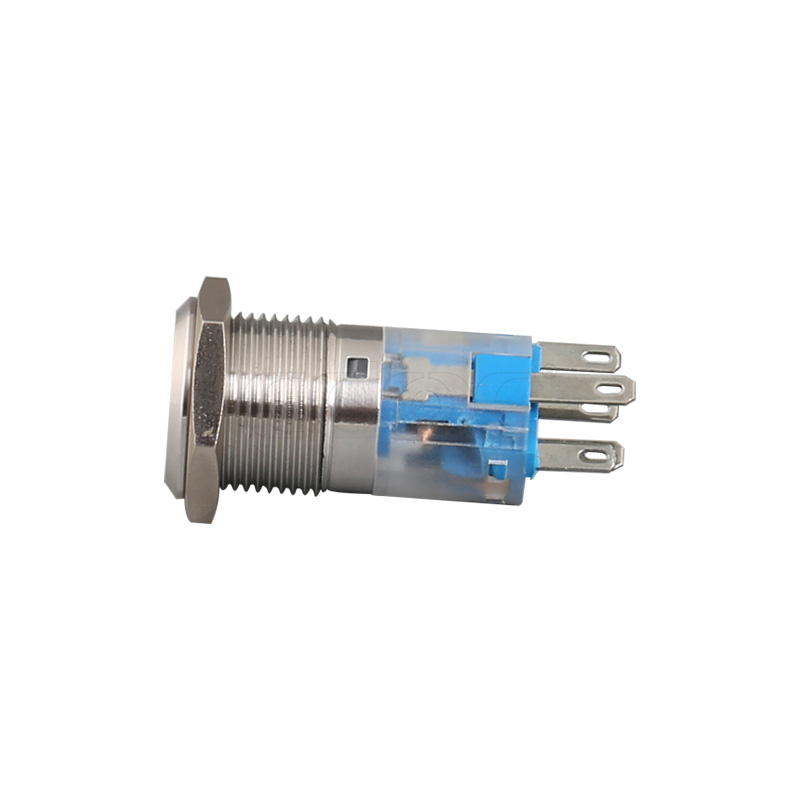

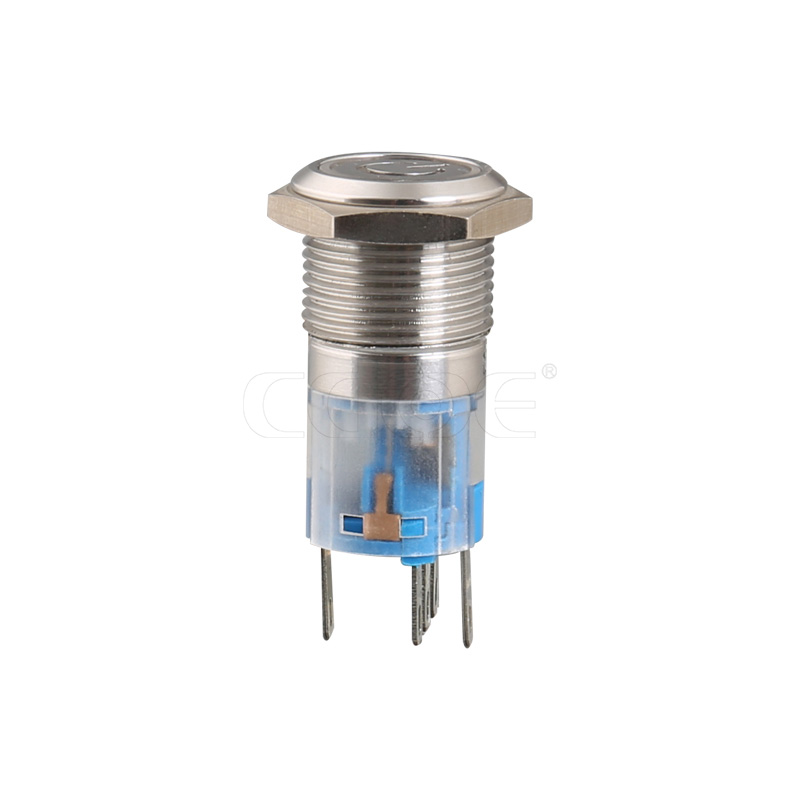

Essence ring power symbol button 16MM anti-damage switch. Start and stop with control equipment.Illuminates power symbol and ring around the button head when activated.IP67 rated for dust and waterproof up to 1 meter. Used in motorcars, motorcycles, vessels, ministry assiduity outfit and other places.
▶Product Model Specification:

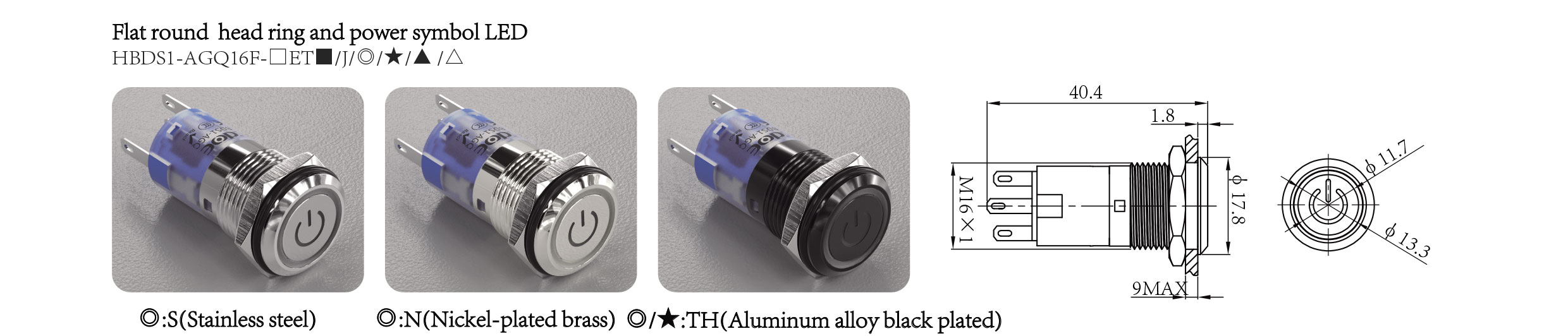

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ16F Series ring led power push button switch |
|
| Product model : | HBDS1-AGQ16F-□ET(Z)/J/N(S) |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Stainless steel/Nickel plated brass/PC; Switch button surface:Stainless steel/Nickel plated brass; Pedestal: PBT; Contact:Silver alloy; |

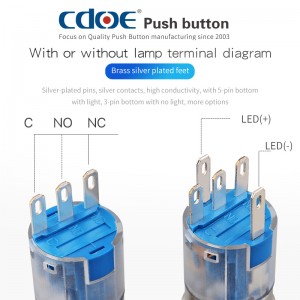

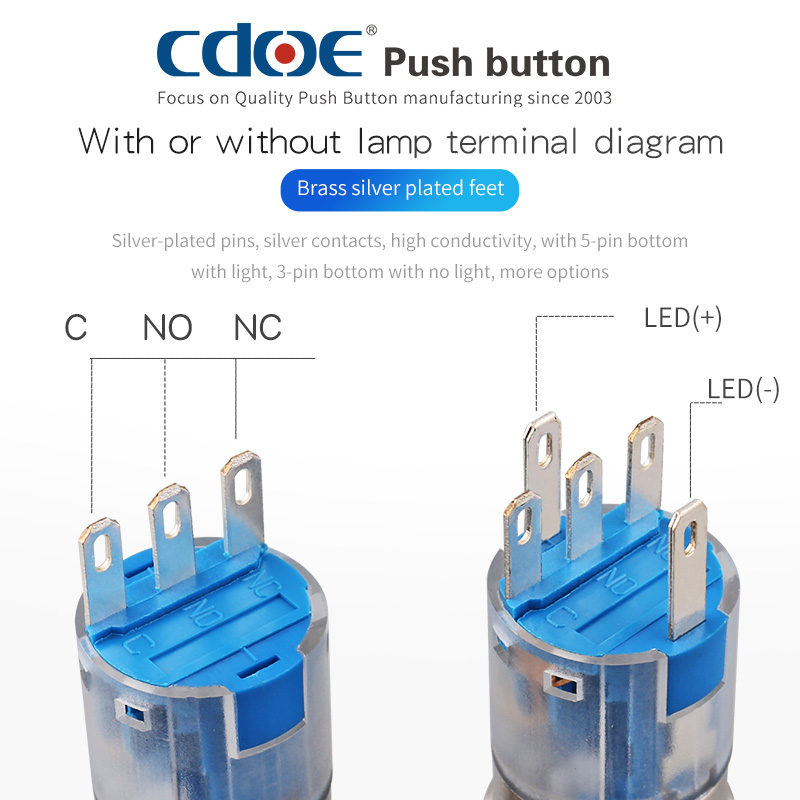

| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:Whether there is a matching connector?
A: “Yes, we have a special connector linker for this series of buttons，The default line length is 15cm. If you need other line length, please note with us when placing an order.”
Q：Can I use this to tuen on and off a home table lamp?
A: “The voltage you use can be controlled if it can meet the rated voltage of the button switch，Please inform clear our salesman to use the use of the environment before purchase.”
Q: Can this switch be used to start a car as a push button Style?
A: “Yes, our buttons can be used in cars. The current and voltage of the car is relatively large, so we suggest that you buy our metal button of high current model, which will be better.”
