The button switch product parameters will be marked with some values such as IP and IK. Do you know what they mean?
|
The meaning of IP level protection |
|||
|
first number for dust protection |
Second digit value for dust protection |
||
|
0 |
no special protection |
0 |
no special protection |
|
1 |
Prevent solids from entering (diameter greater than 50mm) |
1 |
Prevent dripping |
|
2 |
Protection against solid objects up to 80mm in length and 12mm in diameter |
2 |
Prevent vertical dripping |
|
3 |
Prevent solids from entering, larger diameter objects (greater than 2.5mm) |
3 |
Prevent water spray |
|
4 |
Prevent solids from entering, diameter or thickness greater than 1.0mm |
4 |
Splash proof |
|
5 |
Protection from interference with equipment operation |
5 |
Prevent water from spraying nozzles |
|
6 |
Dust-proof |
6 |
Protection against heavy or heavy rain, water jets |
|
|
|
7 |
Prevent water immersion |
|
|
|
8 |
Completely resistant to immersion in water |
The IP rating (ingress protection rating) was developed by the International Electrotechnical Commission (IEC) and is most commonly used in Europe, Asia and North America. IP ratings apply to enclosure protection capabilities, such as our AGQ series pushbutton switches, which are rated IP67 for water resistance. The surface of our metal button is dustproof and waterproof, and can be immersed in water for a short time. Generally, the higher the value, the better the waterproof.
IP rating introduction:
|
IP Rating Chart |
|
|
IP65 |
Dust tight,protected against water projected from a nozzie |
|
IP66 |
Dust tight and protected against powerful water iets |
|
IP67 |
Dust tight and protected against water immersion for 30 minutes between depths of 150mm to 1000mm |
|
IP68 |
Dust tight and protected against continuous water immersion |
Most of the company’s products are waterproof ip65 grade, IP67 waterproof buttons include AGQ series, high current pin terminal metal series, metal signal lights, new style 16mm 1no1nc button switch and mini type colorful head ball button and other products. The higher waterproof products have IP68, there is only one piezoelectric series button at present, and more series are still under development.
 |
 |
 |

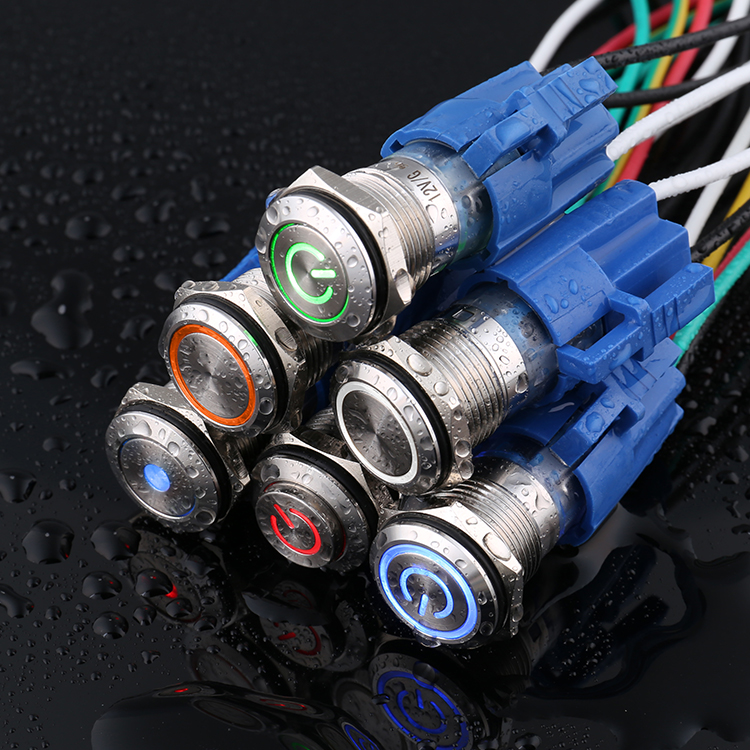

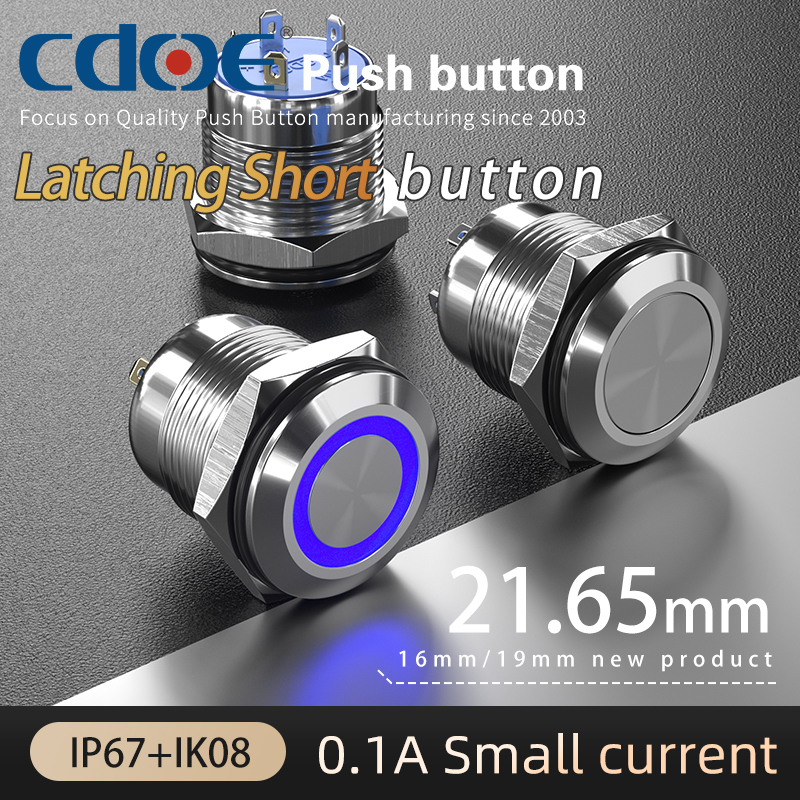

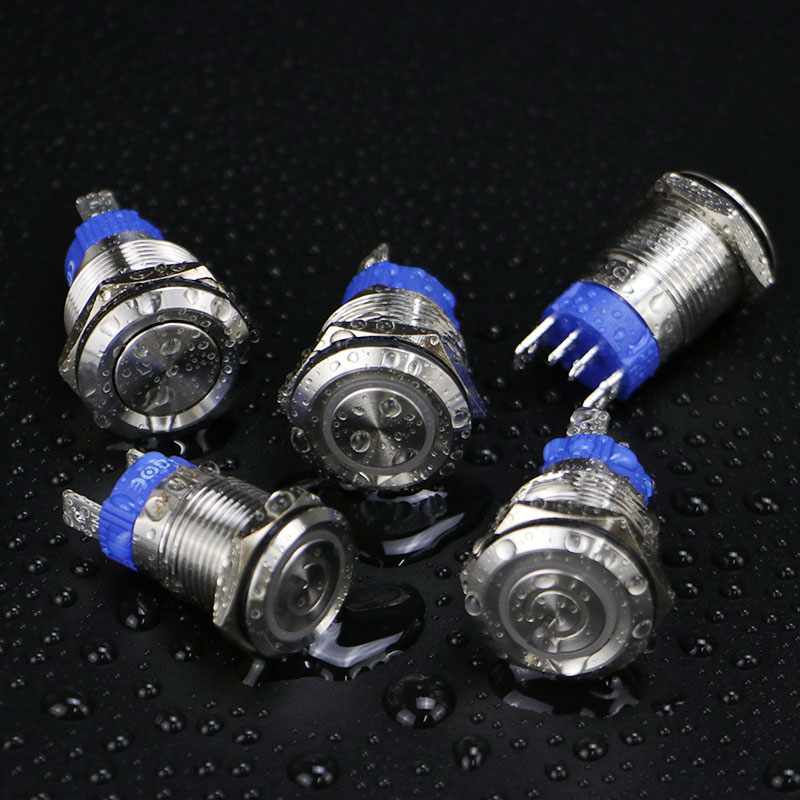

| 10A high curren push button switch (IP67) | AGQ series metal ring led ip67 pushbutton (IP67) | New style metal 16mm switches SPDT (ip67) |
 |
 |
 |

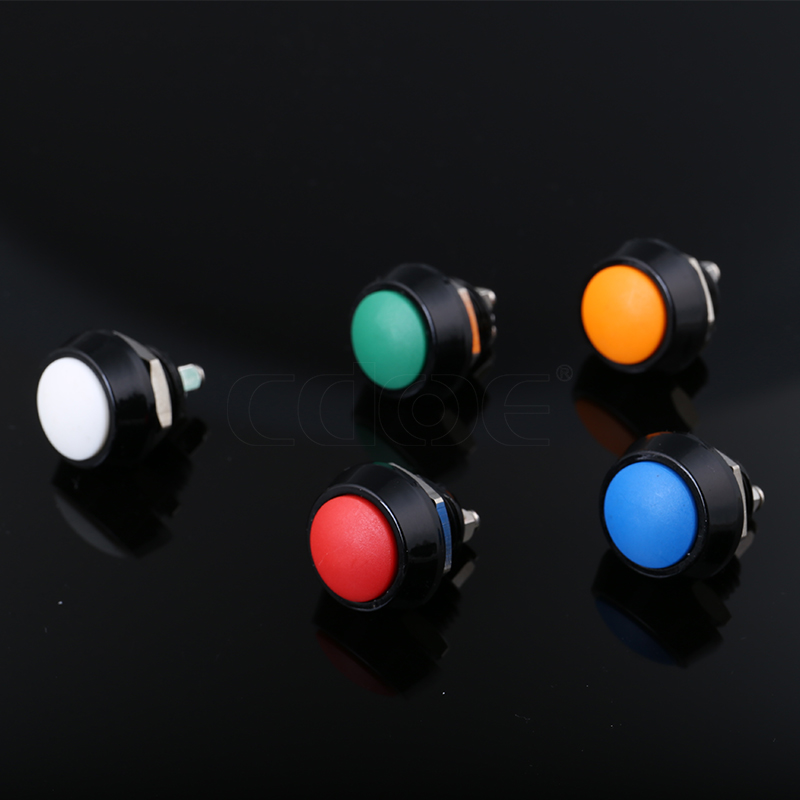

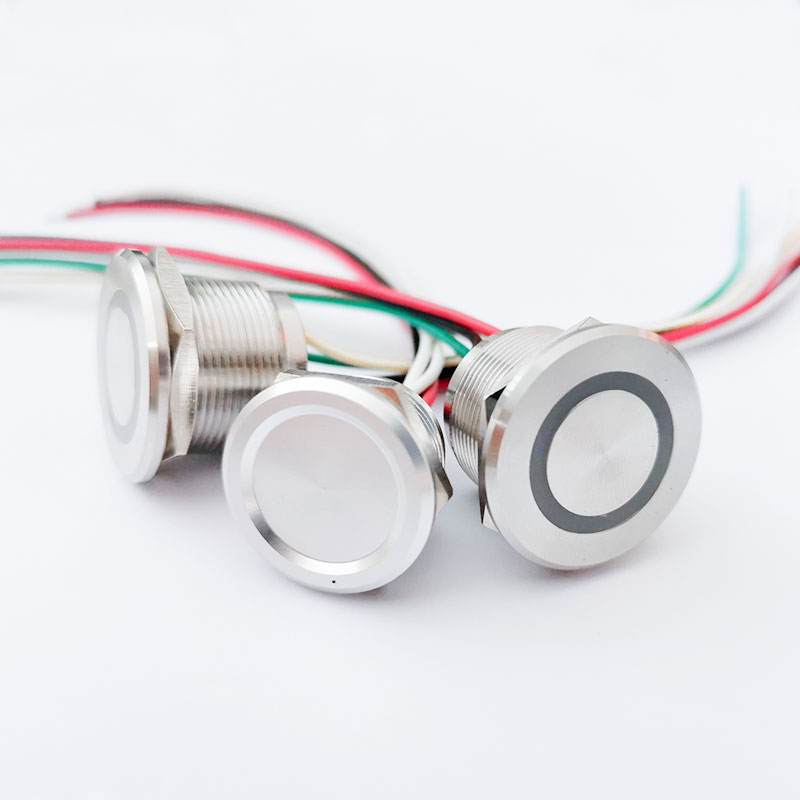

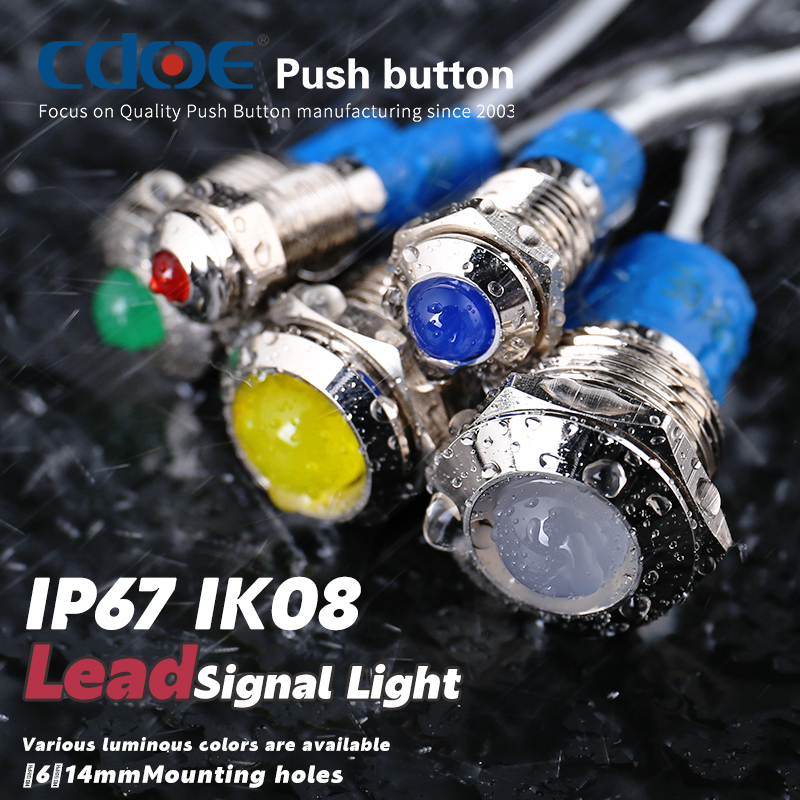

| 12mm Domed head switch control car (IP67) | Waterproof ip67 indicator lamp (IP67) | Piezo switch metal pushbutton (IP68) |
