Key words: HBDS1GQ metal button,Pin terminal switches,Aluminium plating button,SPDT 22mm switch,Product Description

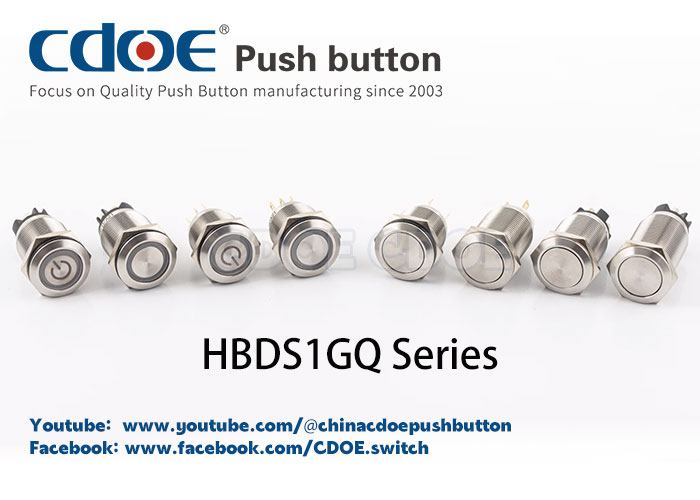

1. Series Introduction
HBDS1GQ series metal buttons, extended threaded switch shell body, suitable for various installation depth environments.Multiple head types: Flat head,Ring LED, ring and power symbol. The 304 stainless steel metal shell is not only beautiful, but also the appearance color can be electroplated according to customer needs (Aluminum Plating color: Red, Green, Blue,Purple,Black,.etc).The sealing is reliable, and the waterproof rubber ring is built in the head, which is waterproof and dustproof. It can be applied to various places, and it can easily cope with the environment with high humidity. The waterproof level can reach IP65. Stable and efficient, energy-saving and environmentally friendly imported LED lamp chips, which emit light evenly, and the colors of LED lamp beads are red, green, yellow, orange, blue, and white. A common contact configuration is 1NO1NC (SPDT). Two connection methods, wiring inserts or screw posts; switch rating: 5A/250.Operation type:reset or lock can be selected;The installation hole diameters are 19/22/25/30mm.
Switch type
Momentary:Works when pressed, releases to restore state.
Latching:Keep working after release, need to press again to resume.
2. Technical parameters
|
Switch rating: |
AC：5A/250V |
|
Ambient temperature: |
-25℃~+65℃ |
|
Contact resistance: |
≤50MΩ |
|
Insulation resistance: |
≥100MΩ |
|
Dielectric strength: |
AC1780V |
|
Mechanical life: |
≥1000,000 times |
|
Electrical life: |
≥50,000 times |
|
Switch structure: |
Double break point snap-action contact |
|
Switch combination: |
1NO1NC |
|
Surface metal explosion-proof grade: |
IK08 |
|
Protection class: |
IP65 |
|
Operation pressing force： |
3~5N |
|
Operating stroke： |
3mm |
|
Nut torque： |
5~14N |
|
Shell material： |
Nickel plated brass，Stainless steel |
|
Button material： |
Stainless steel |
|
Base material： |
Plastic base |
|
Contact material： |
Silver alloy |

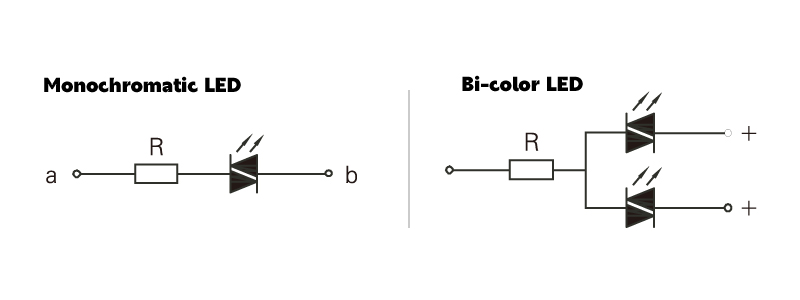

3. LED lamp bead specifications
|
Lamp bead type: |
AC DC general purpose |
|
Rated voltage: |
1.8V、2.8V、6V、12V、24V、36V、110V、220V |
|
LED color: |
Red,Green,Orange,Blue,White |
|
Life: |
50,000 hours |

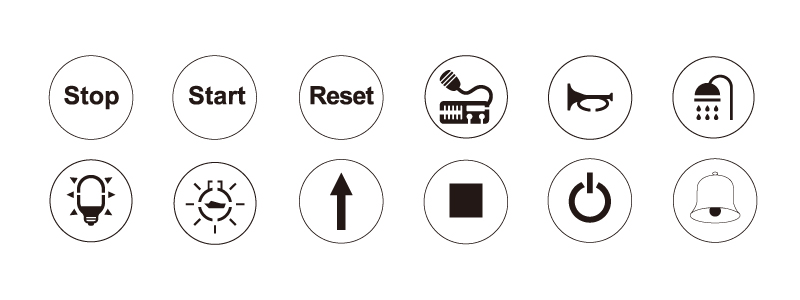

4. Custom made style

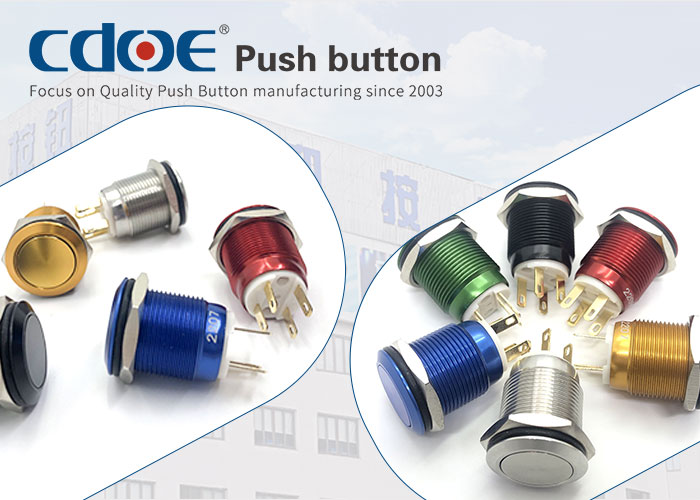

The button surface of the metal button switch can be customized laser symbols, text and logo, and the shell supports Aluminium plating red, green, blue, black and orange. It has a certain novelty and aesthetic effect.

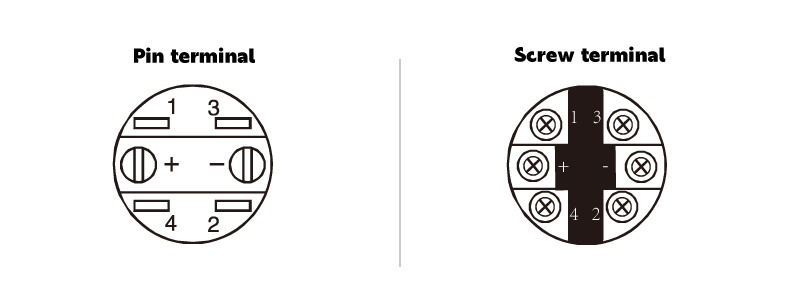

5. Pin Description
1、2 Represent NC：Normally close terminal
3、4 Represent NO：Normally open terminal
+、- Represent LED terminal：There is no need to distinguish between cathode and anode

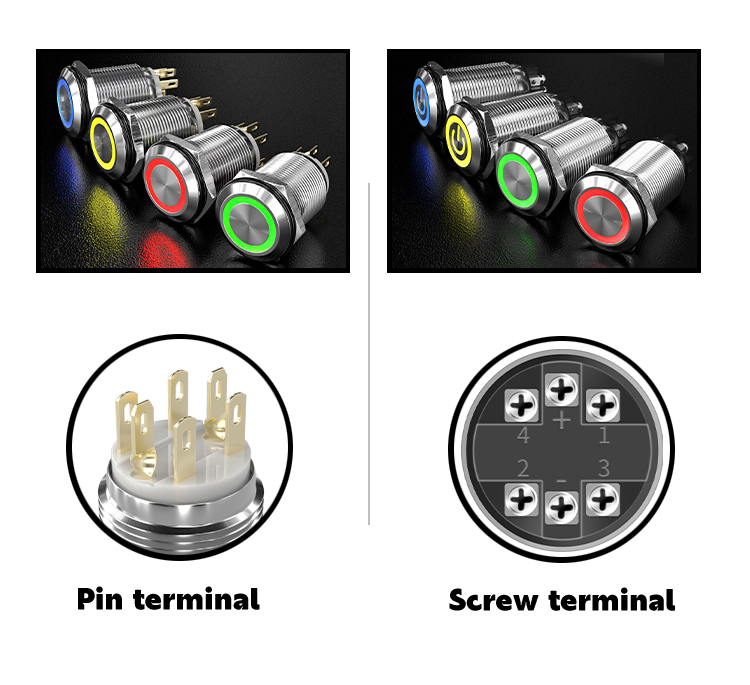

This series of push button switch can be produced pin terminal and screw terminal.
6. Protection and installation instructions
1.Welding precautions: Any incorrect welding operation may cause plastic deformation of the product, poor switch contact, etc. When users use pin-type button switches and signal lights, the phenomenon of product damage due to improper welding often occurs, so please pay attention to the following points when wiring operations:
2. Choose a suitable electric soldering iron to speed up the welding speed. It is recommended to use an electric soldering iron below 30w to complete the soldering within 2 seconds at 320°C.
3. The amount of flux must be appropriate, and the switch pins should face down as much as possible when soldering.
4. Use plug-in terminals as much as possible to avoid welding connections.
