Metal push button 19mm normally open normally close ring power ss 10amp ip67 cdoe product
▶Metal Push Button Switch Product Description:
Introducing Our Precision-Crafted Metal Push Button
Elevate Your Control Panel with Unmatched Precision
Step into a realm of precision control with our meticulously engineered Metal Push Button. Crafted with exacting detail and precision, this button sets a new standard for performance and reliability in control panel design.
Robust Construction for Unyielding Performance

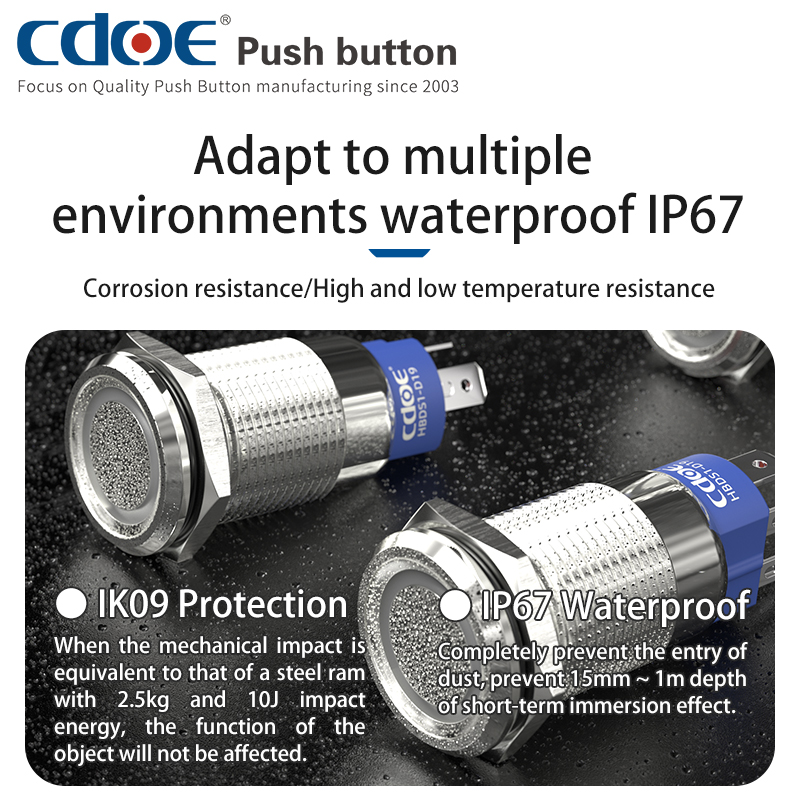

Forged from high-grade stainless steel, our button is not just durable—it's virtually indestructible. With an IP67 waterproof rating, it effortlessly withstands the harshest conditions, ensuring unwavering performance in industrial, outdoor, and demanding environments.
Illuminate Your Panel with Striking Clarity
Embrace clarity and sophistication with our button's distinctive concave head ring and power symbol design, exuding professionalism and elegance. Its vibrant blue LED illumination adds a touch of brilliance to your control panel, enhancing visibility and clarity in any environment.
Versatile Functionality for Seamless Integration
Tailored to your needs, our button offers both momentary and latching operation modes, providing versatility and adaptability for various control applications. Equipped with pin terminals, installation is a breeze, ensuring a secure and reliable connection every time.
Elevate Your Control Experience Today
Experience the pinnacle of control panel innovation with our Metal Push Button. From its robust construction to its striking aesthetics and versatile functionality, it's the ultimate choice for precision control and unwavering performance.
▶Metal Push Button Product Model Specification:

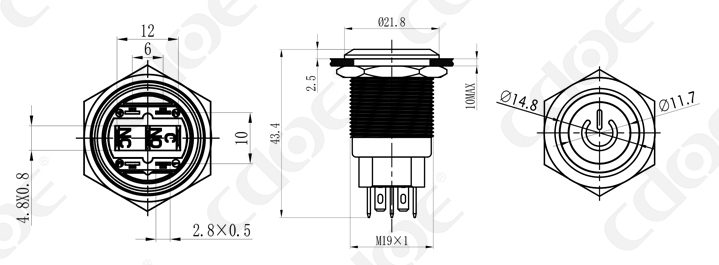

▶Metal Push Button Product Size:
▶Technical Parameter:
|
HBS1-D19C-11ET(Z)/J/S/T19 metal push button |
|
| Product model : | HBS1-D19C-11ET(Z)/J/S/T19 |
| Mounting hole size : | 19mm |
| Switch value: | Ith:10A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Base: Plastic PA66; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Blue |
| Protection grade: | IP67 |
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
