China manufacturers illuminated pushbutton switch 19mm ss red led 220v mating connector 10a
▶Product Description:
Are you searching for a control solution that combines precision and style? Look no further than our 19mm Illuminated Pushbutton Switch. This versatile switch is a perfect fit for applications where performance and aesthetics go hand in hand.
Built for Demanding Environments 10a current
This pushbutton switch, designed with a 19mm mounting hole, packs a punch with a 10A/250V rating, making it suitable for even the most demanding electrical requirements.
Defying the Elements
With an IP67 waterproof rating, this switch can perform reliably in wet and challenging conditions. Its 1NO1NC contact type and pin terminal ensure easy and secure installation.
Illuminated LED Indication
What sets our Illuminated Pushbutton Switch apart is the customizable LED indicator. While it comes with a vivid red LED, you have the option to customize it as a bi-color LED in red and green. The LED voltage is adjustable, ranging from 6-48V to a robust 220V. The flat head ring LED design adds a modern and distinctive touch to your control panel.
Streamlined Installation
We value your time and efficiency. That's why we've included a convenient supporting connector with this product. It simplifies the installation process, allowing you to save time without sacrificing quality.
Elevate Your Control Systems
Our 19mm Illuminated Pushbutton Switch isn't just about functionality; it's about making a statement. Whether it's industrial machinery, commercial equipment, or other applications, its momentary operation ensures precise control while adding a touch of sophistication to your control panel.
Order Today
If you're ready to enhance your control systems with precision and style, your search ends here. Place your order for our 19mm Illuminated Pushbutton Switch today and experience the superior performance and design it brings to your projects. We are committed to delivering high-quality products that will elevate your systems to new heights. Elevate with us!

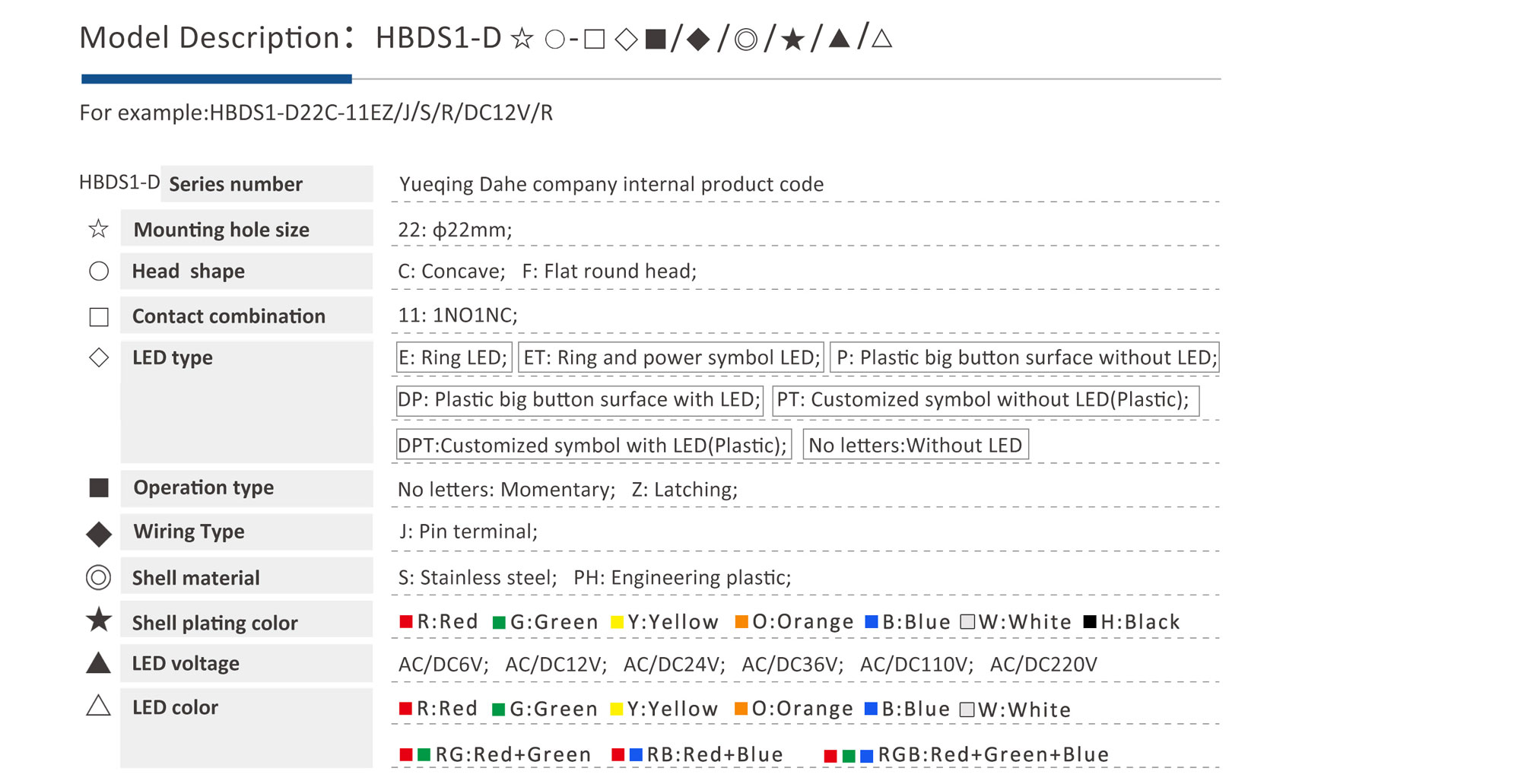

▶Product Model Specification:

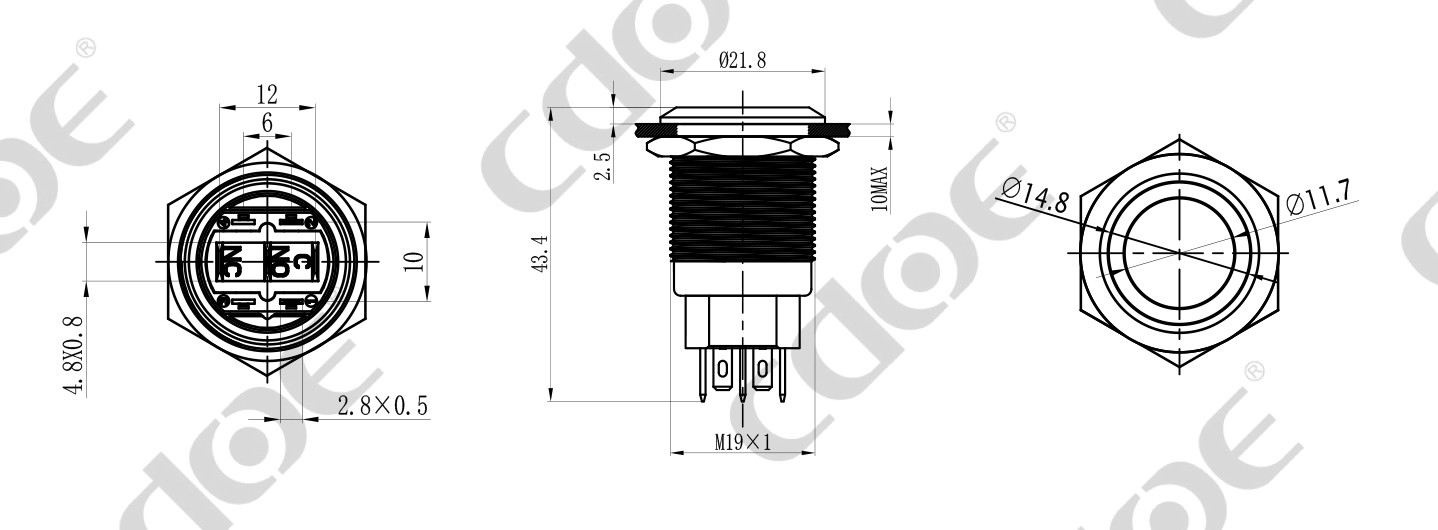

▶Product Size:
▶Technical Parameter:
|
HBDS1-D19C illuminated pushbutton switch |
|
| Product model : | HBDS1-D19C-11E/J/S/R/T19 |
| Mounting hole size : | 19mm |
| Switch value: | Ith:10A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Base: Plastic PA66; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White/RG/RB/RGB |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
