6mm Metal Signal Lamp Ip67 Pin Terminal Waterproof 220v Led Pilot Light With Wire
▶Product Description:

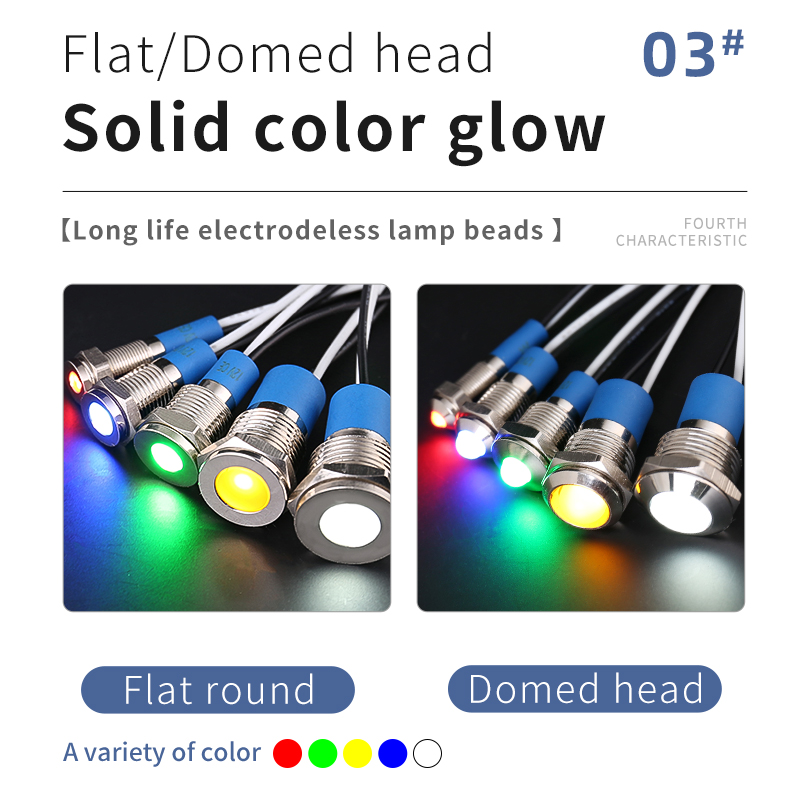

6mm mounting hole metal indicator waterproof, multi-color light source. The shell is made of energy-saving and environment-friendly material, and the base has its own lead wiring, which is simple and fast, and has two kinds of luminous effects. Long life pole - less lamp bead.

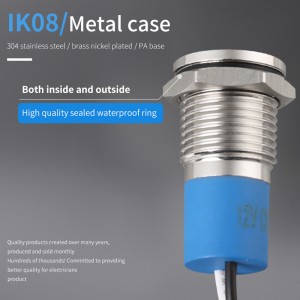

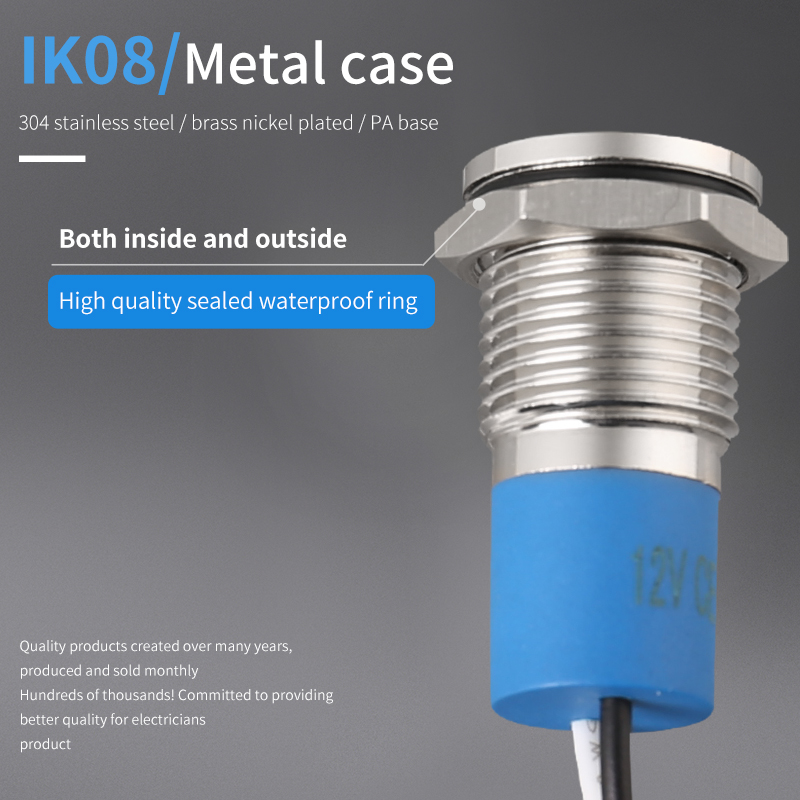

304 stainless steel shell with strong compression resistance and corrosion resistance. Ik08 Protection level.The conventional line length is 15cm,Other lengths require customized remarks.Built-in waterproof device, waterproof grade up to IP67.

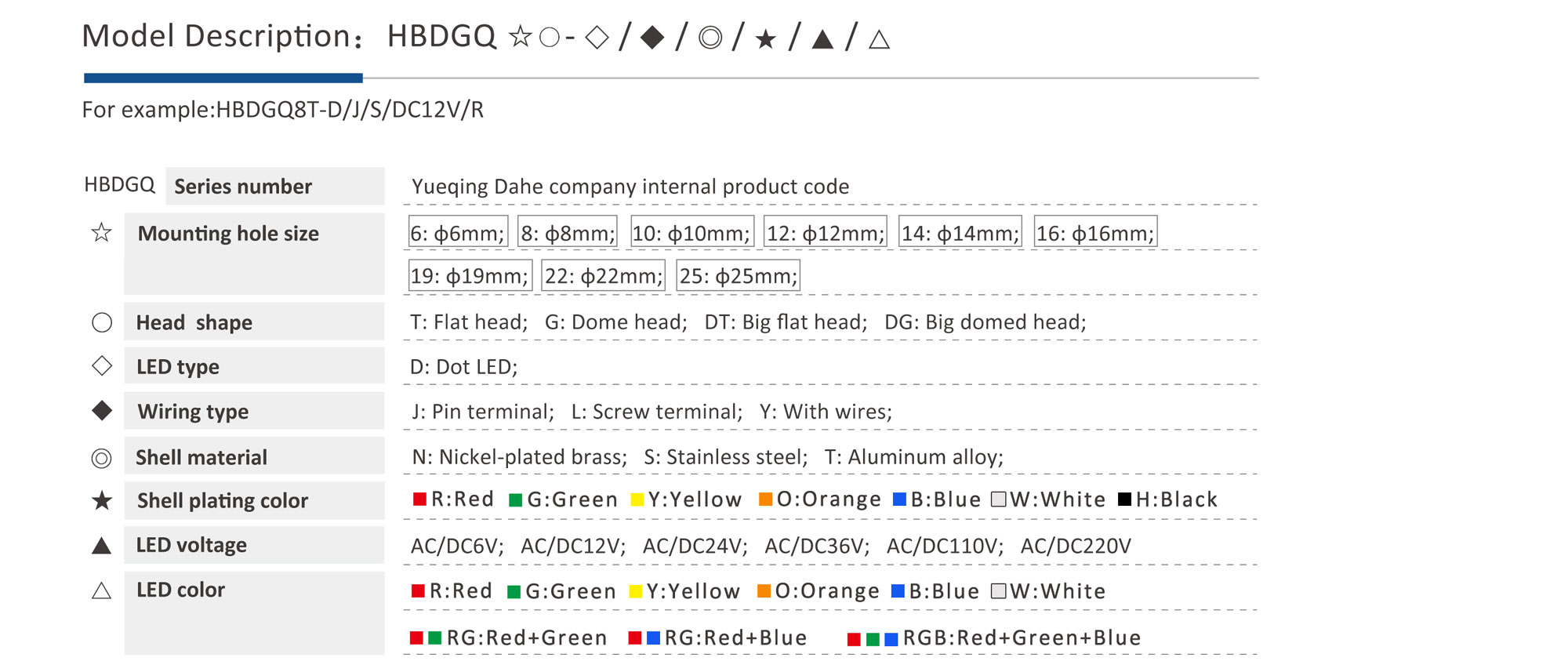

▶Product Model Specification:

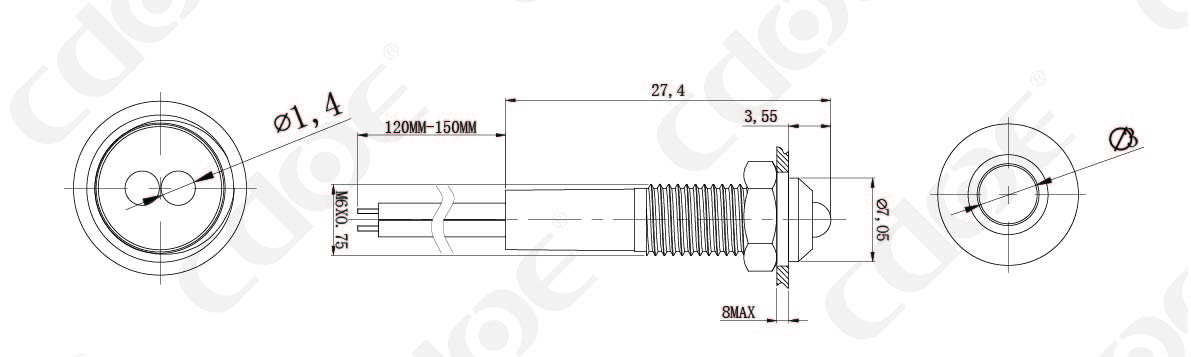

▶Product Size:
▶Technical Parameter:
|
HBDGQ 6mm Metal signal lamp series |
|
| Product model : | HBDGQ6G-D/Y/S(N) |
| Mounting hole size : | 6mm |
| Appearance material: | Signal lamp surface:Stainless steel/Nickel plated brass; Base:PBT |
| Lamp bead parameters | |
| Rated voltage : | 3V/6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Connection form: | With wire |
| Protection grade: | IP67 |
▶Problems Encountered By Buyers:
Q:Whether there is a signal lamp with screw feet?
A:“Have some signal lights with screw terminal, the mounting holes start from 16MM.”
Q:Is it possible to customize bi-color signal lights?
A:“Yes，Customize bi-color signal light starts from mounting hole 8mm with wire.”
Q:Can the lead of signal lamp be made longer?
A:“Custom line length requires an increase in price.You can send us your specific line length, and we will ask the factory to produce a fixed length for you”
