High-Visibility high head Ring LED Reset Function 19mm Black Oxide push button switches
▶Product Description:
Introducing our black oxide button, featuring a 19mm mounting size with a high head and ring LED illumination. With its sleek black oxide finish and durable construction, this button is built to withstand heavy use and offer reliable performance.
The button features a momentary type switch with a 4-pin terminal, allowing for easy installation and connection. It can handle up to 5A of current, making it suitable for a range of applications.
In addition to its standard high head design, this button is also available in multiple head types to suit different needs and preferences. The ring LED illumination provides clear visual feedback, making it easy to locate and use the button in low-light or high-stress situations.
Whether you need a reliable button for industrial machinery, automation equipment, or other applications, our black oxide button is a great choice. With its rugged build, versatile design, and high-performance features, it is sure to meet your needs and exceed your expectations.
▶Product Model Specification:

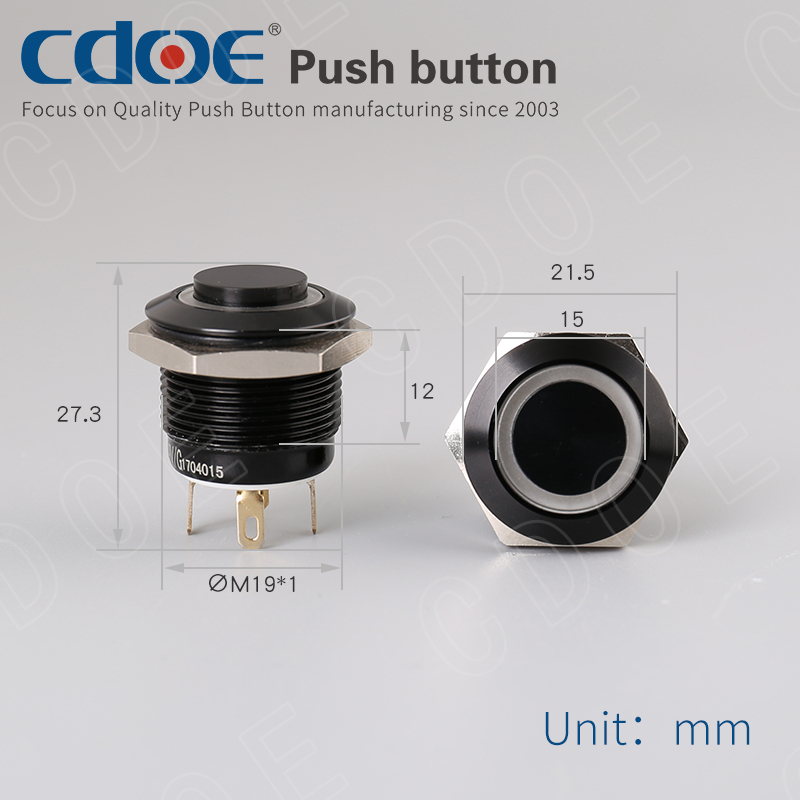

▶Product Size:
▶Technical Parameter:
|
HBDGQ19H-10 Series 19mm Engine Start Button |
|
| Product model : | HBDGQ19H-10E/J/S |
| Mounting hole size : | 19mm |
| Head type: | High head ring led |
| Switch value: | Ith: 3A,UI: 250V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Aluminum alloy; Switch button surface: Aluminum alloy; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: What is the difference between the multiple head types available?
A:“The multiple head types available include different shapes and sizes of buttons, allowing customers to choose the one that best fits their specific application and preferences.
Q: Can this button be used in conjunction with other electrical components?
A: “Yes, this button can be used in conjunction with other electrical components, such as relays or control systems. However, we recommend consulting with a qualified electrician or technician to ensure proper integration and compatibility.”

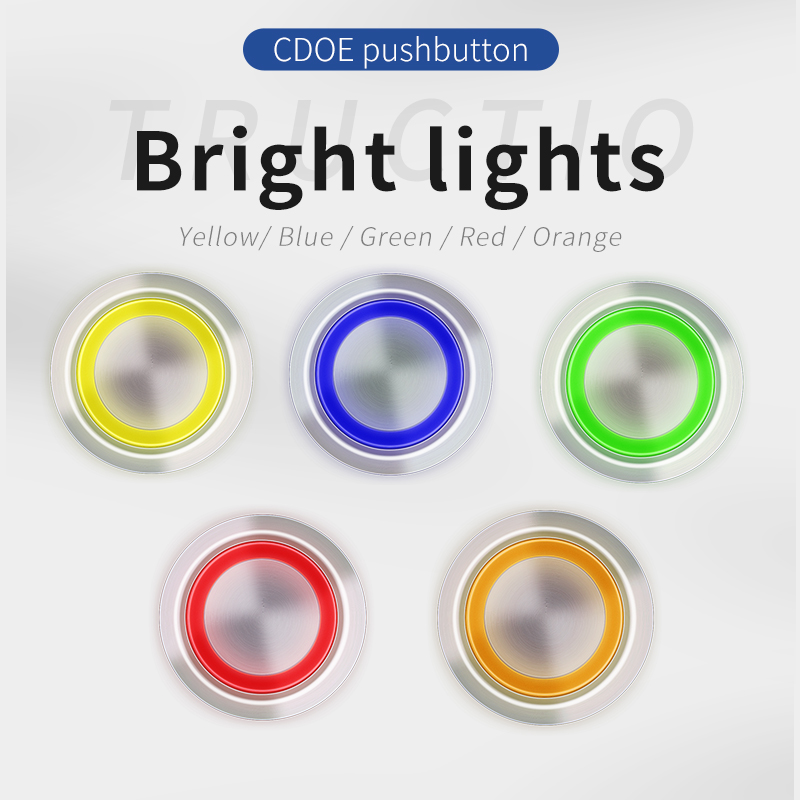

Q: How is the ring LED illuminated and what color options are available?
A: “The ring LED is high head and illuminated. It is available in multiple colors, including red, green, blue, and white.
