Metal 19mm Micro Switch Ip67 Stainless Steel push button With Ring Led
▶Product Description:
Selling super body button switch, 19mm mounting hole waterproof IP67 one normally open self-replicating switch.Short time contact with water.
▶Product Model Specification:

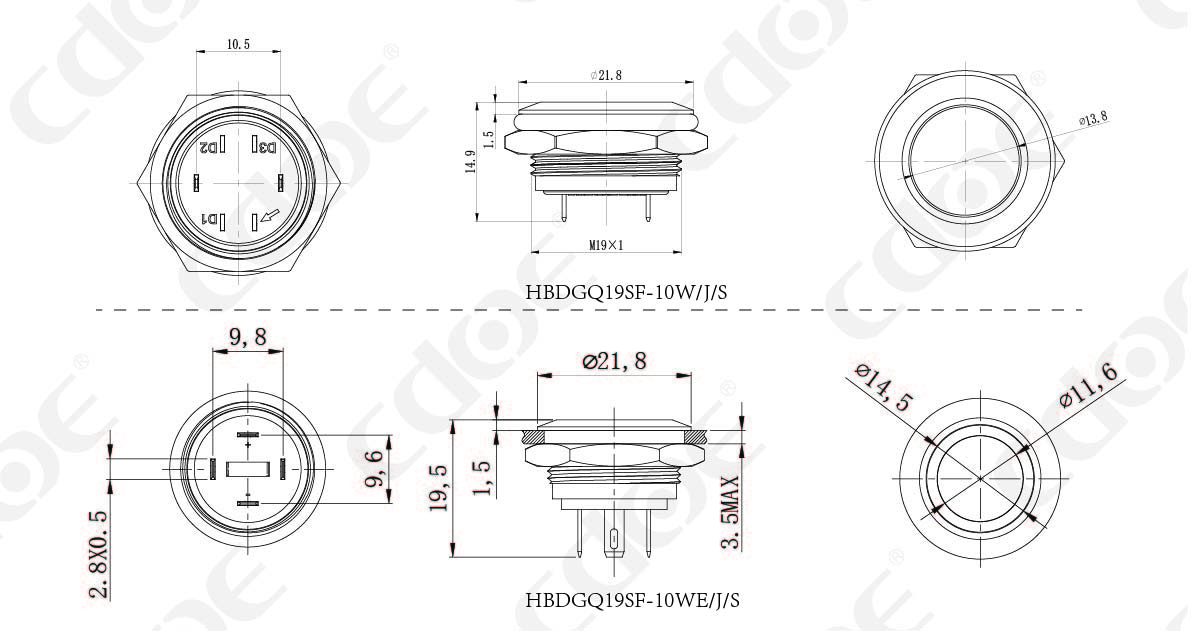

▶Product Size:
▶Technical Parameter:
|
HBDGQ19SF Series Ring illuminated switch with LED |
|
| Product model : | HBDGQ19SF-□W(E)/J/S |
| Mounting hole size : | 19mm |
| Head type: | Flat head/Ring illuminated |
| Switch value: | Ith:50mA,UI:12V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head:Stainless steel/PC; Switch button surface:Stainless steel; Pedestal:PBT; Contact:silver alloy; |
| Terminal type: | With wire |
| Working environment temperature: | -25℃～+65℃ |

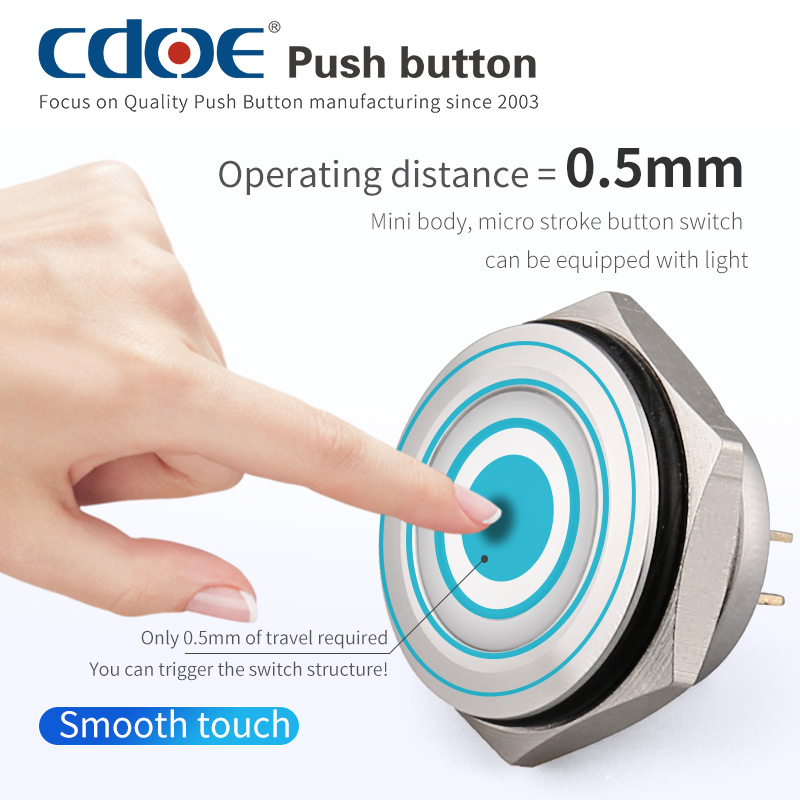

| Movement stroke: | About 0.5mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |

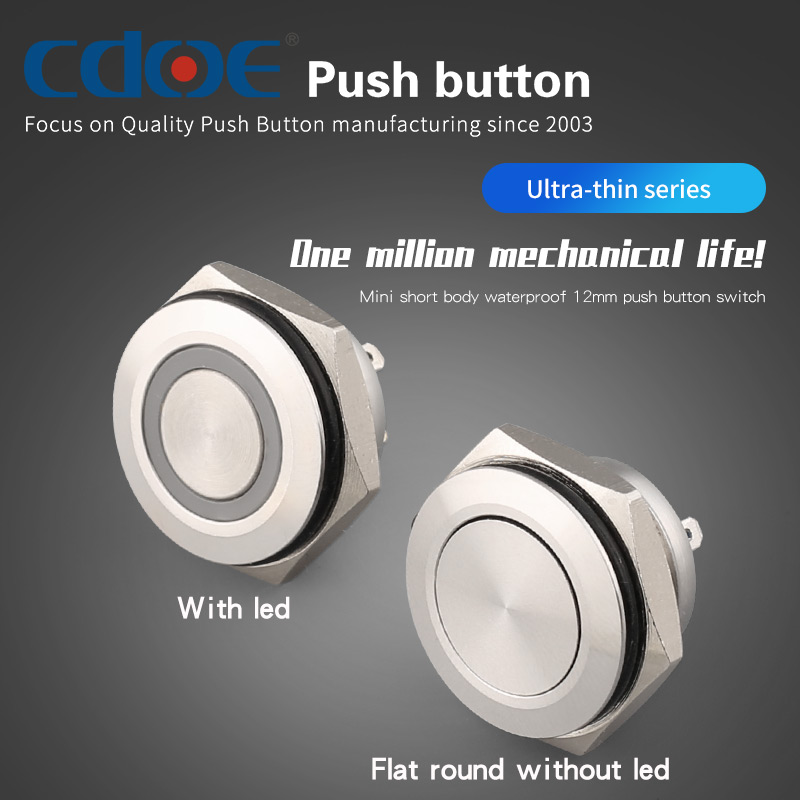

| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:Does the enclosure support aluminum black plating?
A:“Yes,we can.Aluminum-plated black is not our regular shell, which requires a quantity of 200 pieces or more than 500 pieces. ”
Q:Is 40 pieces buttons a box?I'd like two boxes, please?
A:“Yes.19mm mounting hole a box of 40 pieces button switches.”
Q:Whether there is a 19mm screw pin button switch?
A:“Yes, you can send us the operation types and functional requirements.
