Bedding face 16mm push button electrical switch medical plastic 1no1nc
▶Product Description:
Medical equipment commonly used plastic buttons, 16MM mounting hole metal head material, plastic material shell. It can be configured with waterproof device, waterproof ip65. Brass silver-plated pins are used with special adapter connectors.
▶Product Model Specification:

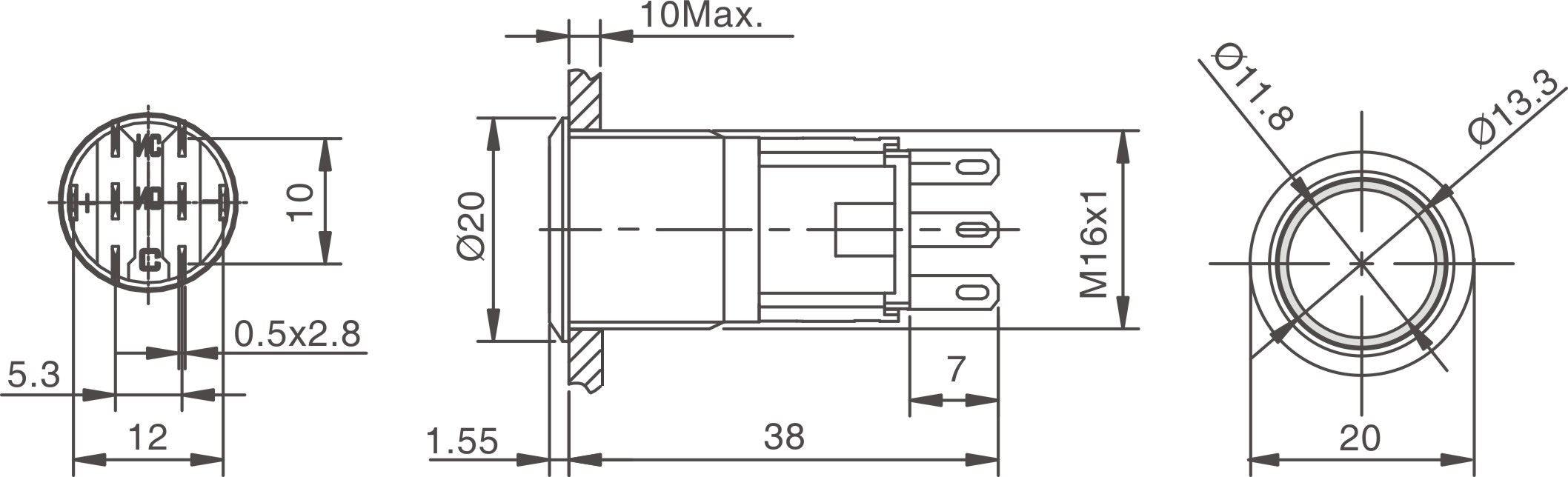

▶Product Size:
▶Technical Parameter:
|
16mm Plastic shell electrical switch momentary 1no1nc pushbutton |
|
| Product model : | HBDS1-AGQ16F-□D(Z)/J/PC |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: Metal; Switch button surface: Metal; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |

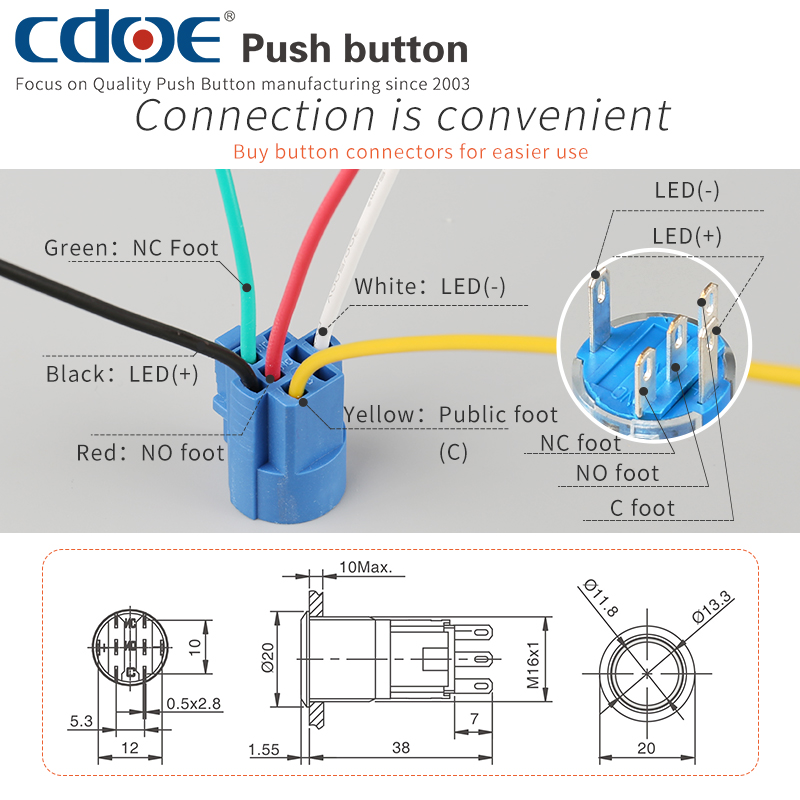

| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |

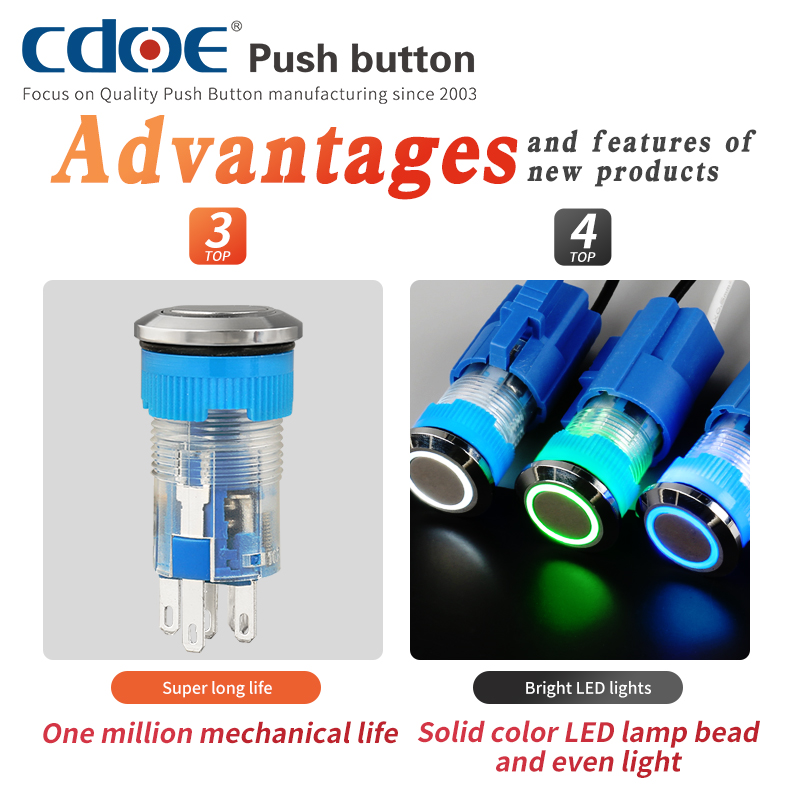

| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:What are push buttons called?
A:"This button is specially made by us for medical equipment. The product name is changed from hbDS1-CY Series to HBDS1-AGQ Series".
Q:Does this only have this big head style?
A:"No, in addition to the circular or large head seen in the picture, we also have the same type of selection button, key button, power symbol".
Q:What is the waterproof rating of this model?
A:"This button switch is ip65 waterproof".
