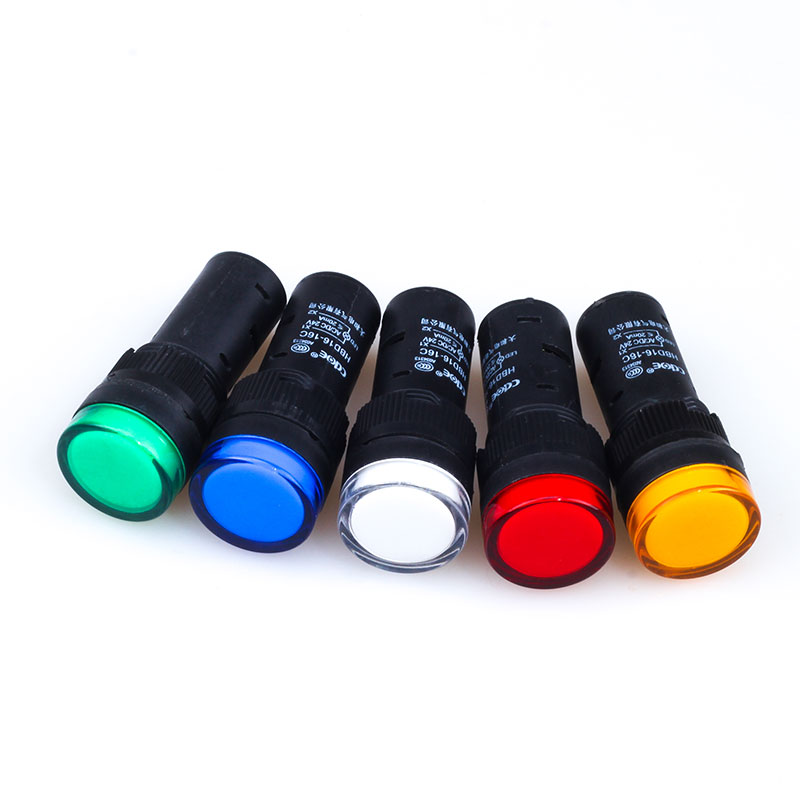

16mm Plastic Ad16-16ds 2 Pins Panel Indicator Light Signal Lamp 380v
▶Product Description:

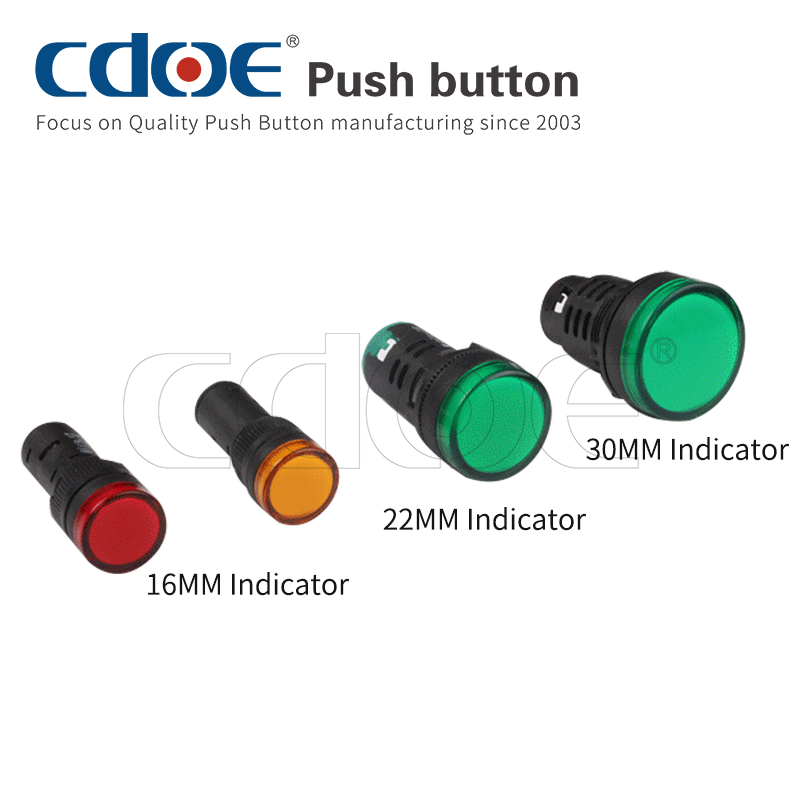

Plastic AD16-16DS signal lamp is an anti-interference indicator light, long life, low power consumption, compact structure.Using hidden screw terminal, both safe and reliable. High quality LED chip, Rohs energy saving and environmental protection material shell.16mm, 19mm two installation aperture, a variety of series code: “DA” stands for short signal light,”AS” stands for long type signal lamp,”M” stands for buzzer,”S” stands fo flash buzzer.
▶Product Model Specification:

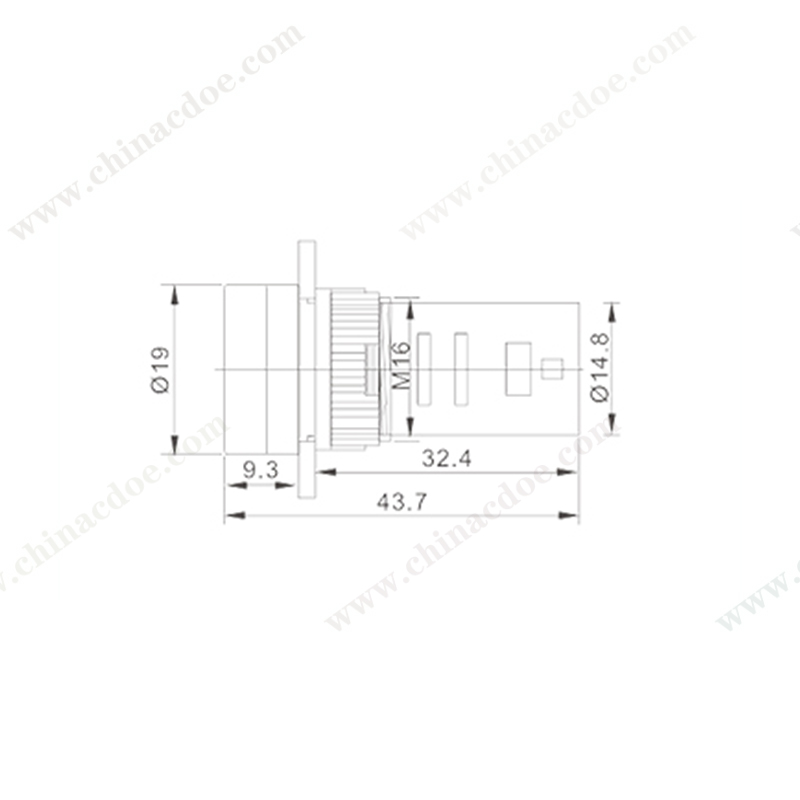

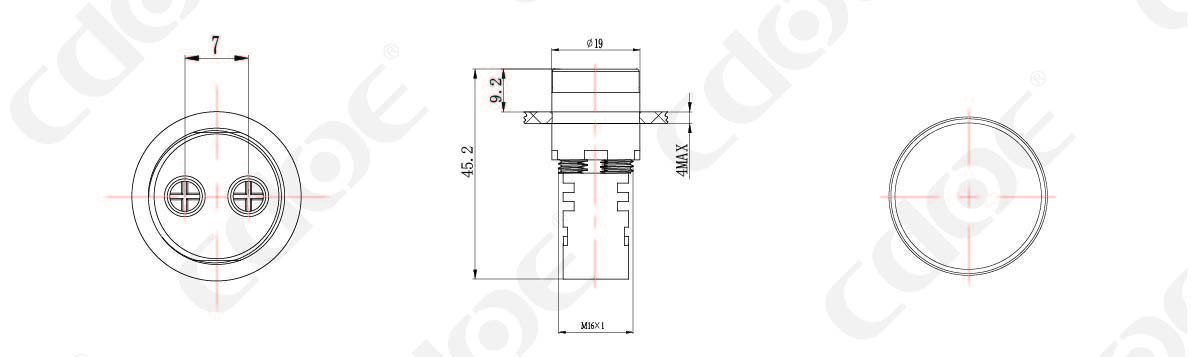

▶Product Size:
▶Technical Parameter:
|
HBD16-16DS Plastic signal lamp series |
|
| Product model : | HBD16-16DS |
| Mounting hole size : | 16mm |
| Appearance material: | Signal lamp button surface:PC Shell:PA66 |
| Terminal type: | Screw terminal |
| Working environment temperature: | -25℃～+65℃ |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/110V/220V/380V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Connection form: | With wire |
| Protection grade: | IP65（Head waterproof） |
▶Problems Encountered By Buyers:

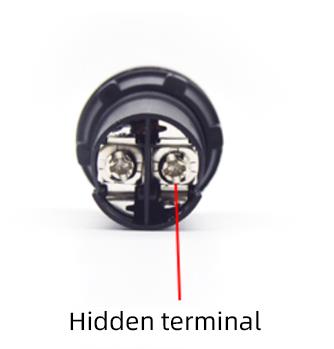

Q:I want to know how to connect the wires, can you tell me?
A:“Connect the live line of the power force to one screw of the index light, and also connect the neutral line of the power force to the other screw.”
Q:Is there any certificate for this product?
A:“At present, this certificate has CE and Rohs.”
Q:I want 220v voltage signal lamp, red, green, blue light, where can buy?
A:“Hi,dear.You can buy online in Alibaba, you can also leave your contact information below, we will contact you as soon as we receive.”
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
