16mm latching switch 3a spst panel mount push button 2 pins terminal
▶Product Description:
Our 16mm latching switch with a flat head is a high-quality, reliable switch that is perfect for a variety of applications. With a 3A 250V switch rating, our switch is designed to provide reliable performance in even the most demanding environments.

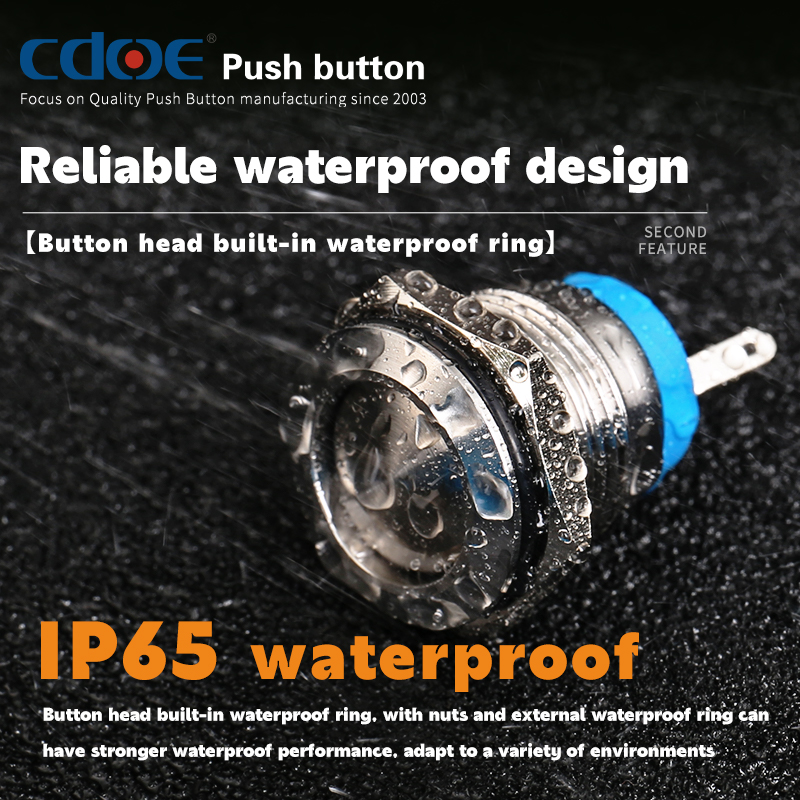

Featuring one normally open switch contact, our switch is easy to operate and can be used in a wide range of applications, including industrial equipment, home appliances, and more. The switch is also waterproof with an IP65 rating, making it perfect for use in wet and damp environments.
Our 16mm latching switch is designed to be easy to install and is perfect for use in applications where space is limited. The flat head design allows for easy operation, while the compact size ensures that the switch can be used in a variety of applications.
Overall, our 16mm latching switch with a flat head offers excellent durability, reliability, and performance, making it an ideal choice for any application where high-quality switches are required. Contact us today to learn more about our products and to place your order.
▶Product Model Specification:

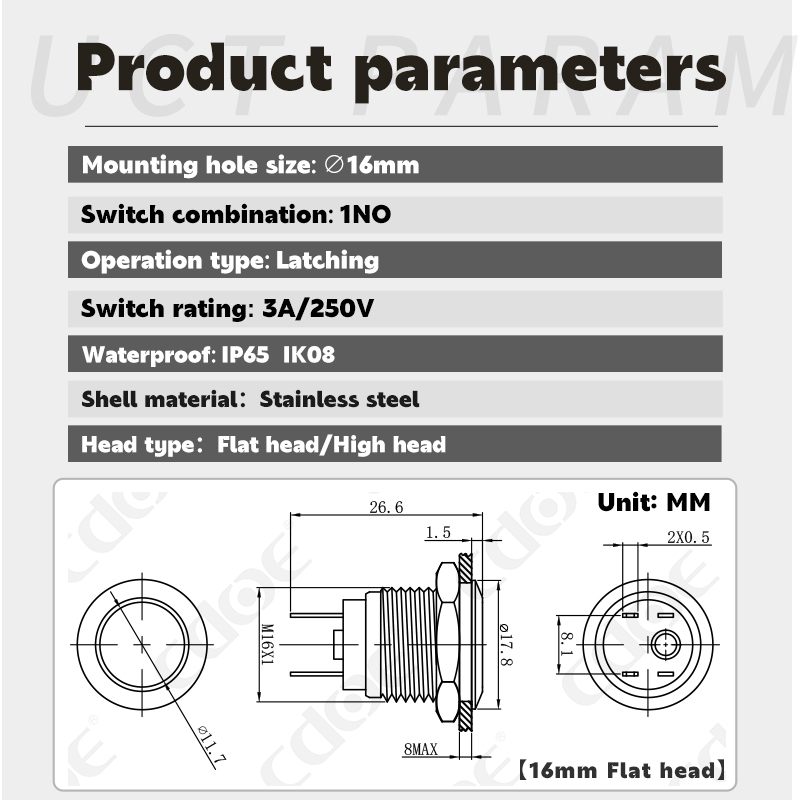

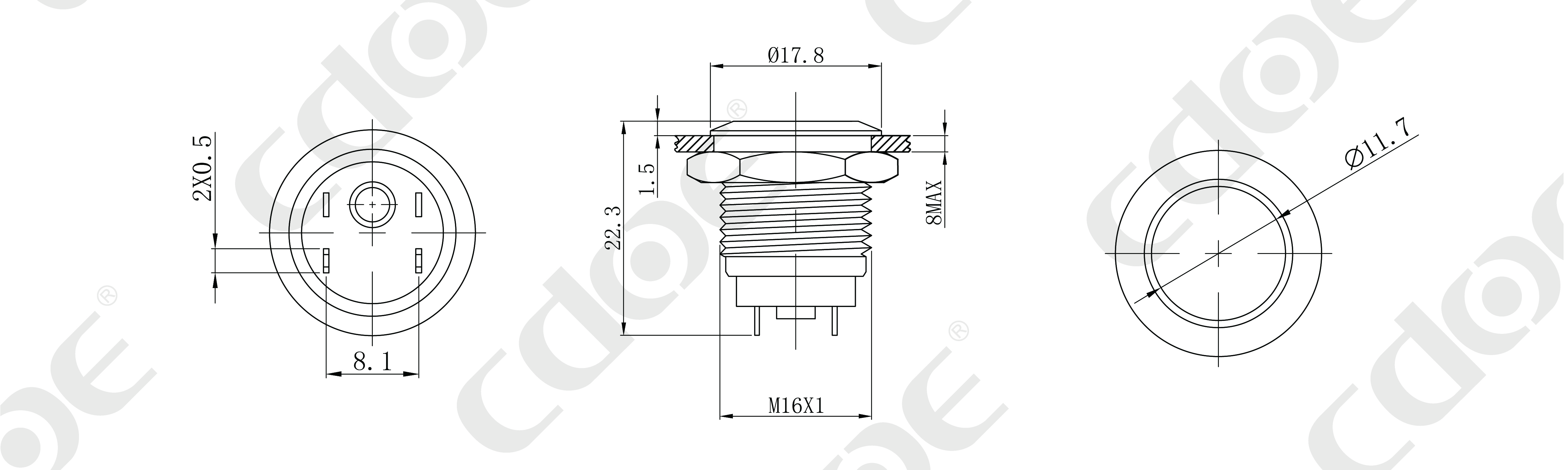

▶Product Size:
▶Technical Parameter:
|
HBDGQ16F-10 Series flat head 3a latching button |
|
| Product model : | HBDGQ16F-10Z/J/S |
| Mounting hole size : | 16mm |
| Head type: | Flat head |
| Switch value: | Ith: 3A,UI: 250V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 0.5mm |
| Connection form: | Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: What is the expected lifespan of the switch under normal operating conditions?
A:“The switch has an electrical life of 50,000 cycles and a mechanical life of 500,000 cycles.”
Q: Can the switch be customized?
A: “Our push-button switches in this series come with custom aluminum oxide housing switch, available in a range of regular colors such as red, green, blue, and gray.”
Q: What is the return policy for the switch if it is found to be defective or does not meet the customer's requirements?
A: “If the switch is defective or does not meet the customer's requirements, the defective pictures or videos of the products should be provided for certification. The defective products should be retained. If our company determines that we are responsible, we will return the damaged goods for redelivery. The charge for returning the goods is to be borne by us.”
