On OFF 12MM button customize logo arrow waterproof Momentary Switch
▶Product Description:

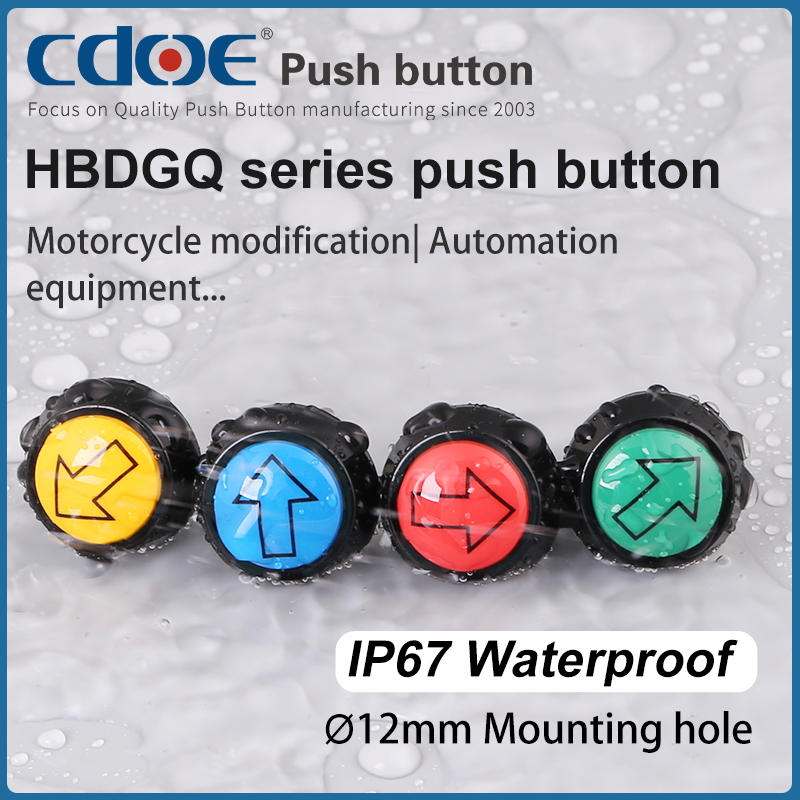

Introducing our high-quality 12mm button switches, perfect for a wide range of applications. With a mounting hole of 12mm and a rating of 3A/250V, these switches are the ideal choice for your electrical circuit needs.Our 12mm Momentary Push Button Switch features a normally open contact type and pin contact terminal. The switch head comes in a variety of colors such as yellow, red, green, blue, and more, allowing you to choose the perfect color for your specific project. Additionally, we offer custom arrow symbols on the switch head for further customization.

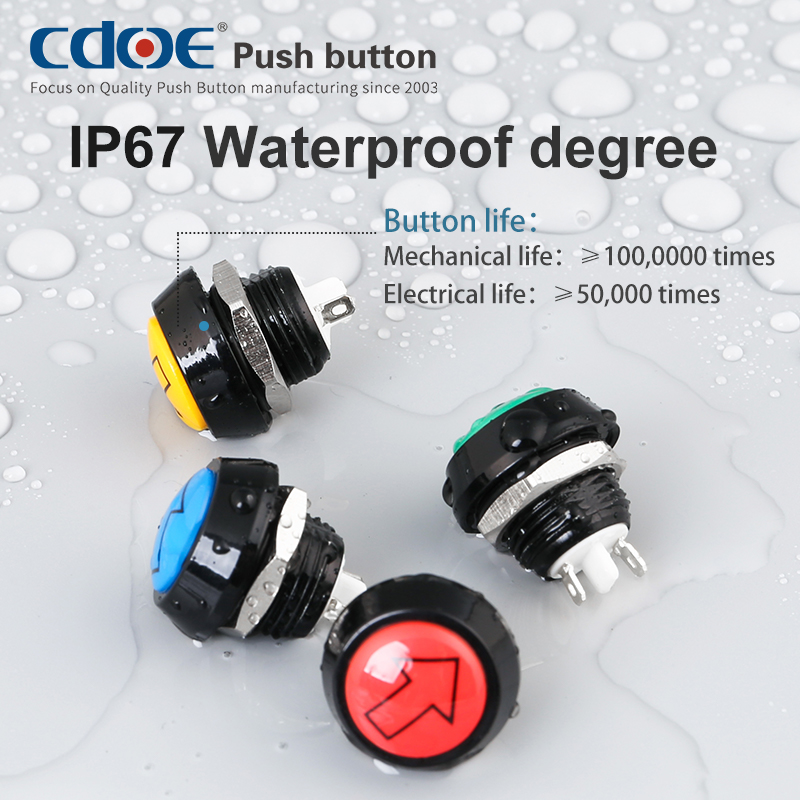

For applications requiring low power, our 12mm Power Push Button Switch is a great choice.With a rating of 3A/250V, this switch is perfect for high-powered electrical circuits. The switch head also comes in a variety of colors and can be customized with arrow symbols.If you need a switch that is waterproof, our 12mm Waterproof Momentary Push Button Switch is the perfect choice. With an IP67 waterproof rating, this switch can withstand harsh environments and weather conditions. As with our other switches, the switch head is available in a variety of colors and can be customized with arrow symbols.
Finally, our Mini On Off Push Button Switch is a great choice for applications requiring a maintained switch state. With a normally open contact type and pin contact terminal, this switch is perfect for applications such as control equipment. The switch head is available in a variety of colors and can be customized with arrow symbols.
No matter what your electrical circuit needs are, our 12mm button switches are a reliable and versatile choice. With high-quality construction and a wide range of customization options, you can trust our switches for all your projects.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDGQ Series domed head 12mm Momentary Push Button Switch |
|
| Product model : | HBDGQ12B-□/J/A(Customize) |
| Mounting hole size : | 12mm |
| Switch value: | Ith:3A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO |
| Appearance material: | Head: Zinc-aluminum alloy; Switch button shell: Zinc-aluminum alloy; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 2.5mm |
| Connection form: | Supporting connector/Welding wire |
| Head color: | Red/Green/Yellow/Blue/White/Black |
| Protection grade: | IP67 |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, No flicker and breakdown |
▶Problems Encountered By Buyers:
Q: What is the difference between the Momentary Push Button Switch and the Power Push Button Switch?
A: “The Momentary Push Button Switch is normally open and only closes when the button is pressed, while the Power Push Button Switch is normally closed and only opens when the button is pressed.”
Q:What applications are these switches suitable for?
A: “These switches are suitable for a wide range of applications, such as industrial machinery, home appliances, automotive applications, and medical equipment.”
Q:What is the contact terminal type for these switches?
A: “In addition to the pins terminal in the article, there are screw terminal.”
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.

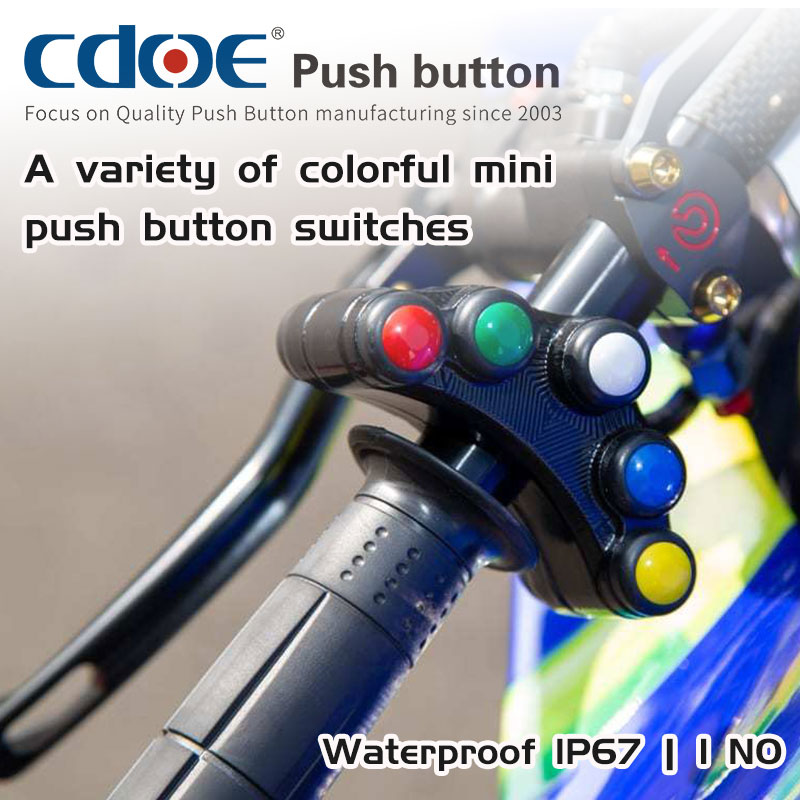

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
